Tubular Fence is made from welded steel tubes and used for residential fencing, school boundaries, factory areas, pool fencing, parks, villas, and commercial security projects. The panel is usually built with square pickets, horizontal rails, steel posts, brackets, and base plates. Common styles include flat top, spear top, ornamental spear top, and custom welded patterns. For outdoor use, the steel tube is normally galvanized and then powder coated. Standard colors include black, green, gray, and other RAL colors on request. Matching swing gates and sliding gates can be supplied for the same fence line.

Specifications

Product name: Tubular Fence

Common names: Tubular steel fence, picket welded fence, ornamental fence, steel security fence

Material: Q195 steel tube, Q235 steel tube, aluminum tube, wrought iron on request

Panel height: 1.2 m, 1.5 m, 1.8 m, 2.1 m, 2.4 m

Panel width: 2400 mm is common. Other widths can be made by order.

Rail size: 40 x 40 mm, 40 x 30 mm, 50 x 50 mm

Picket size: 16 x 16 mm, 19 x 19 mm, 25 x 25 mm, 30 x 30 mm

Post size: 50 x 50 mm, 60 x 60 mm, 65 x 65 mm, 80 x 80 mm, 100 x 100 mm

Top style: Flat top, spear top, pressed spear top, ornamental spear top

Welding type: Fully welded panel, picket inserted through rail, or face to face welded structure

Surface treatment: Galvanized and powder coated. Hot dip galvanized finish can be supplied for higher outdoor corrosion demand.

Color: Black is common. Green, gray, white, and other RAL colors are available.

Fittings: Steel brackets, anti tamper fasteners, base plates, post caps, hinge sets, latch sets

Matching gates: Manual swing gate, sliding gate, electric sliding gate on request

Application

Residential and villa fencing: Used for front yards, garden boundaries, driveways, and community fencing.

School and park fencing: Suitable for open boundary lines where visibility and clean appearance are needed.

Factory and commercial sites: Used around workshops, warehouses, industrial yards, and equipment areas.

Pool and public facility fencing: Common for pool areas, sports fields, roadsides, and municipal projects.

Products and Specifications

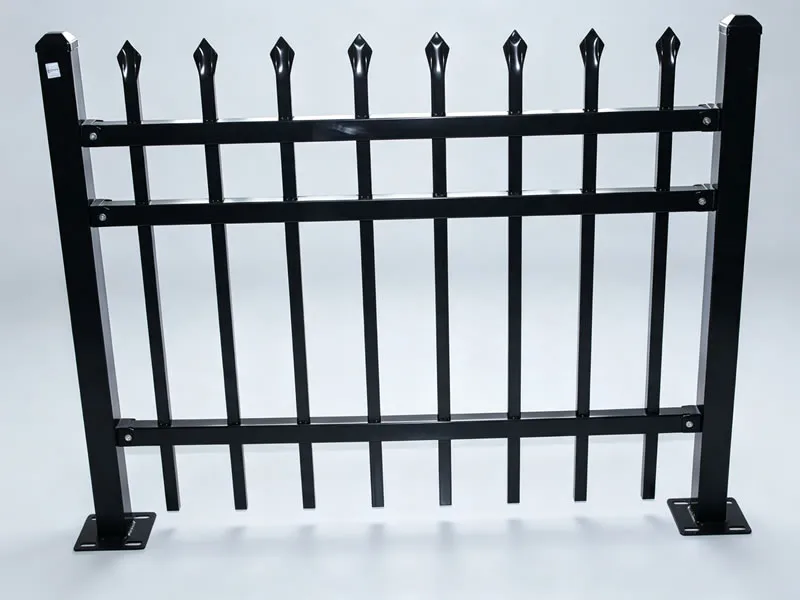

Black spear top fence panel with square posts and bolt down base plates. This type is often used for residential boundary fencing, garden fencing, and low security perimeter lines.

Specifications:
– Panel Size: 2400 x 1200 mm
– Rail: 40 x 40 mm
– Picket: 19 x 19 mm or 25 x 25 mm
– Post: 60 x 60 mm
– Material: Q235 steel tube
– Finish: Galvanized + black powder coated

Use: Garden fence, villa boundary, residential front fence, park fencing.

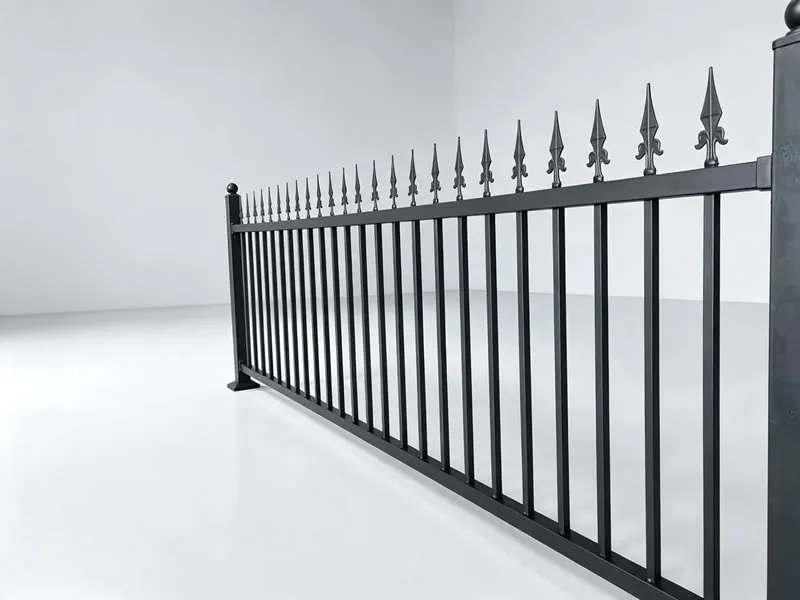

Ornamental spear top tubular fence for longer boundary runs. The panel uses vertical pickets, horizontal rails, and decorative spear heads. It is suitable for projects that need a stronger visual line than a flat top fence.

Specifications:
– Panel Size: 2400 x 1800 mm
– Rail: 40 x 40 mm or 40 x 30 mm
– Picket: 25 x 25 mm
– Post: 65 x 65 mm or 80 x 80 mm
– Material: Q235 steel tube
– Surface: Galvanized + black powder coated

Use: Commercial boundary, school fence, park fence, residential estate fencing.

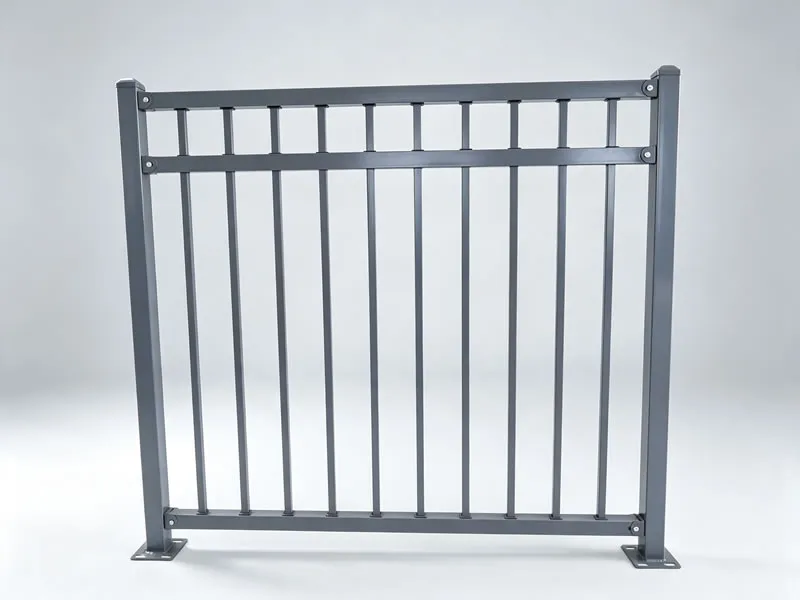

Flat top tubular fence with gray powder coating. This style is simpler than spear top fencing and is easier to match with modern buildings. It is used where a clean fence line is required without pointed picket tops.

Specifications:
– Panel Size: 2400 x 1500 mm
– Rail: 40 x 40 mm
– Picket: 19 x 19 mm
– Post: 60 x 60 mm
– Material: Q195 or Q235 steel tube
– Finish: Galvanized + gray powder coated

Use: School boundary, public facility fence, factory area, walkway separation.

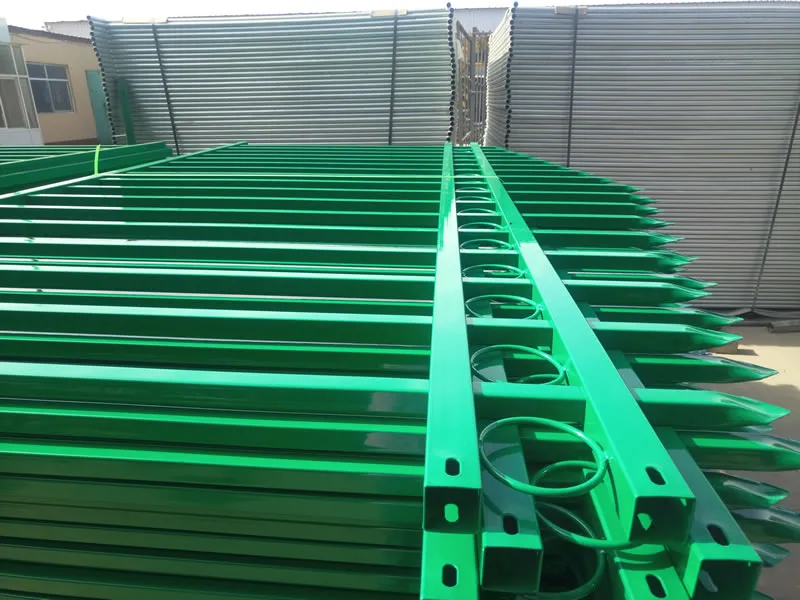

Green powder coated tubular fence panels packed for delivery. This model is suitable for outdoor projects where green color is preferred for gardens, parks, and public areas. Panels can be packed with film, pallet, or steel frame according to shipping requirements.

Specifications:
– Panel Size: 2400 x 2100 mm
– Rail: 40 x 40 mm
– Picket: 25 x 25 mm
– Post: 80 x 80 mm
– Material: Q235 steel tube
– Finish: Galvanized + green powder coated
– Packing: Stacked panels with protective wrapping

Use: Park fence, school perimeter, public green area, factory boundary.

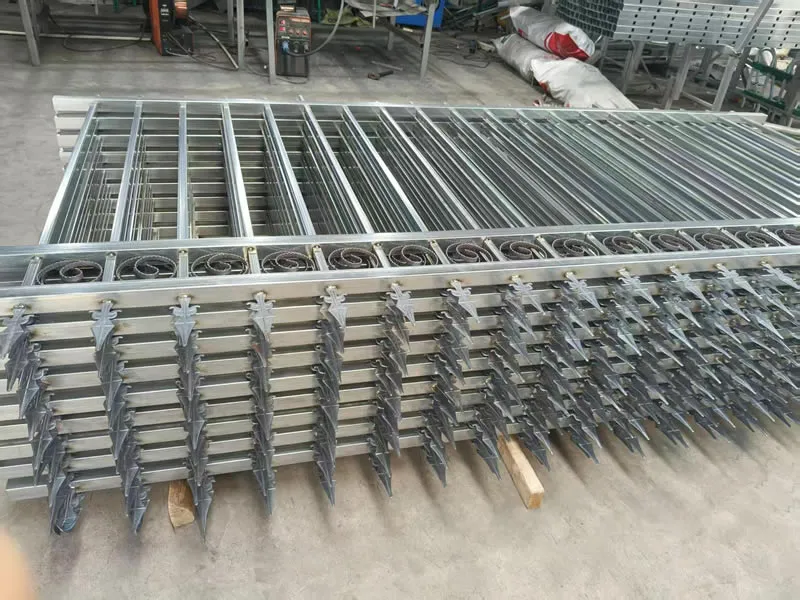

Galvanized ornamental tubular fence panels before final color coating or assembly. This option is used when the buyer needs galvanized base protection before powder coating. Decorative spear heads and scroll details can be made according to drawing.

Specifications:

• Material: Galvanized steel tube
• Panel Width: 2400 mm (standard)
• Panel Height: 1.5 m, 1.8 m, 2.1 m, or 2.4 m
• Rail: 40 x 40 mm or 50 x 50 mm
• Picket: 25 x 25 mm
• Color: Custom powder coating (RAL available)

Use: Villa fence, ornamental boundary, commercial entrance, matching gate panels.

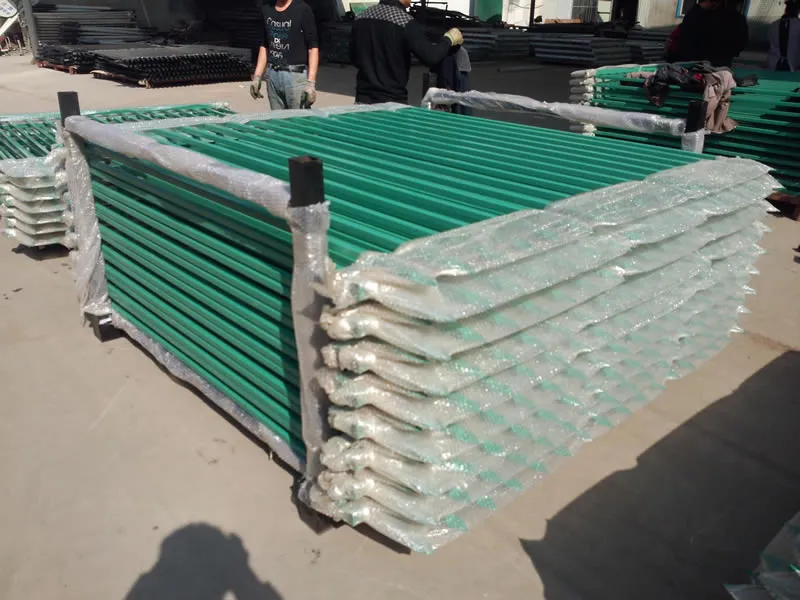

Green spear top tubular fence panels with welded rails and square pickets. The style is used for boundary fencing where the fence needs both visibility and a stronger top profile. Matching posts and brackets can be supplied together.

Specifications:

• Panel Size: 2400 x 1800 mm
• Rail: 40 x 40 mm
• Picket: 25 x 25 mm
• Post: 60 x 60 mm or 80 x 80 mm
• Material: Q235 steel tube
• Surface: Galvanized + green powder coated

Use: Garden boundary, factory fence, park perimeter, public facility fencing.
