Common Razor Wire Specifications

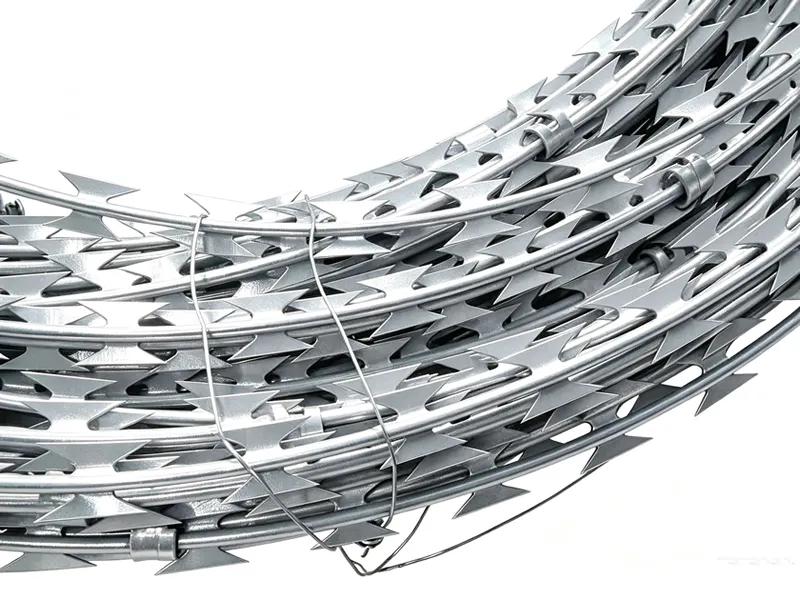

- Steel Materials: Galvanized steel, PVC coated steel, SS304, SS316.
- BTO Razor Wire (Barbed Tape Obstacle): BTO-10, BTO-12, BTO-18, BTO-22, BTO-30

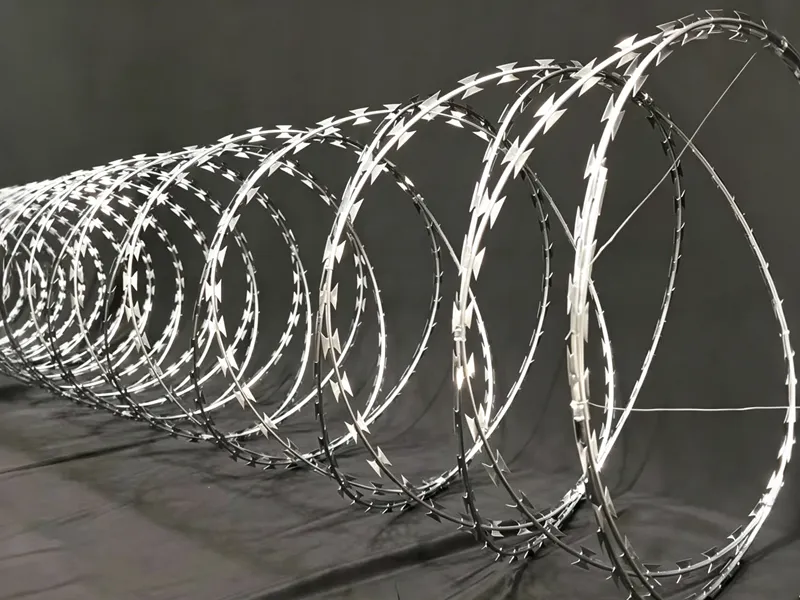

- CBT Razor Wire (Concertina Barbed Tape): CBT-25, CBT-60, CBT-65
- Blade Thickness: 0.45 mm, 0.50 mm, 0.60 mm.
- Core Wire Diameter: 2.5 mm, 2.8 mm, 3.0 mm.
- Wire Material: Galvanized steel, PVC coated steel, stainless steel.
- Standard Coil Sizes: 450 mm, 600 mm, 730 mm, 900 mm, 1000 mm.
- Surface Finish: Galvanized steel, PVC Coated
- Standard Roll Length: 8 m, 10 m, 15 m, 20 m.
- Custom Roll Length: Available for different fence systems.
- Applications: Security fencing, perimeter protection, prisons, military areas, and restricted facilities.

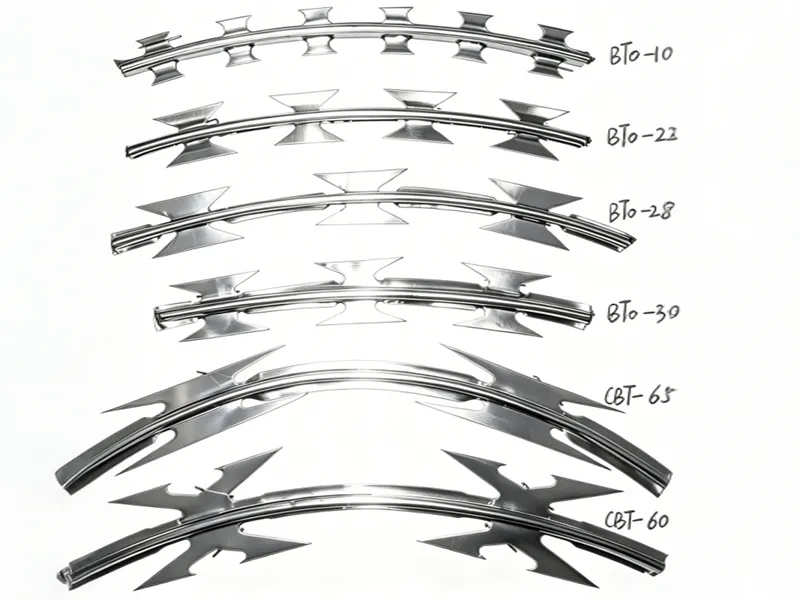

Razor Wire Blade Type Specifications
| Blade Type | Blade Size length × width | Options | Application |
|---|---|---|---|
| BTO-10 | 10 × 15 mm | Single coil, concertina coil | General security fencing |
| BTO-12 | 12 × 15 mm | Different coil diameters and lengths | Commercial and boundary protection |
| BTO-18 | 18 × 15 mm | Customized blade thickness and spacing | Industrial perimeter security |

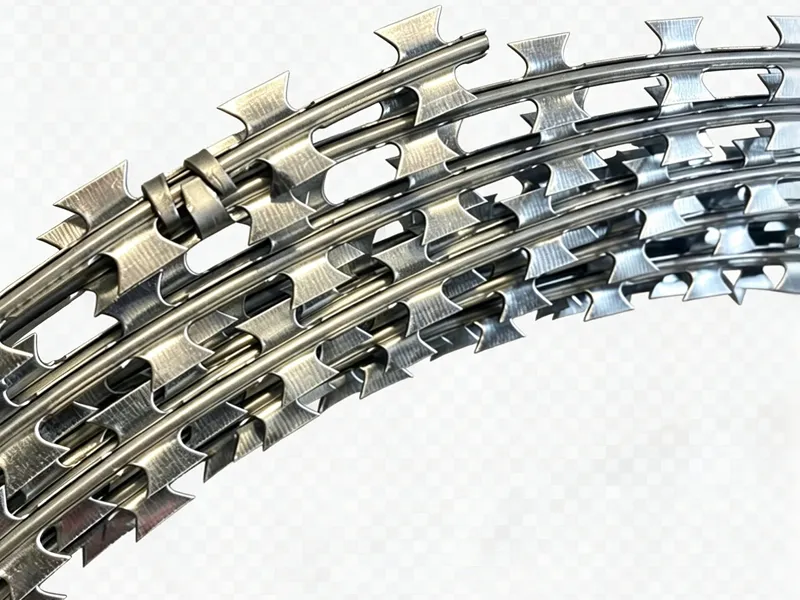

| BTO-22 | 22 × 15 mm | Standard and reinforced versions | Prison, military, and high-security fencing |
| BTO-30 | 30 × 15 mm | Large blade and heavy-duty options | Critical infrastructure protection |
| CBT-25 | 25 × 15 mm | Concertina coil and flat wrap types | Security barriers and fences |
| CBT-60 | 60 × 30 mm | Heavy-duty concertina coils | High-security facilities |
| CBT-65 | 65 × 30 mm | Large blade security coils | Military and restricted areas |

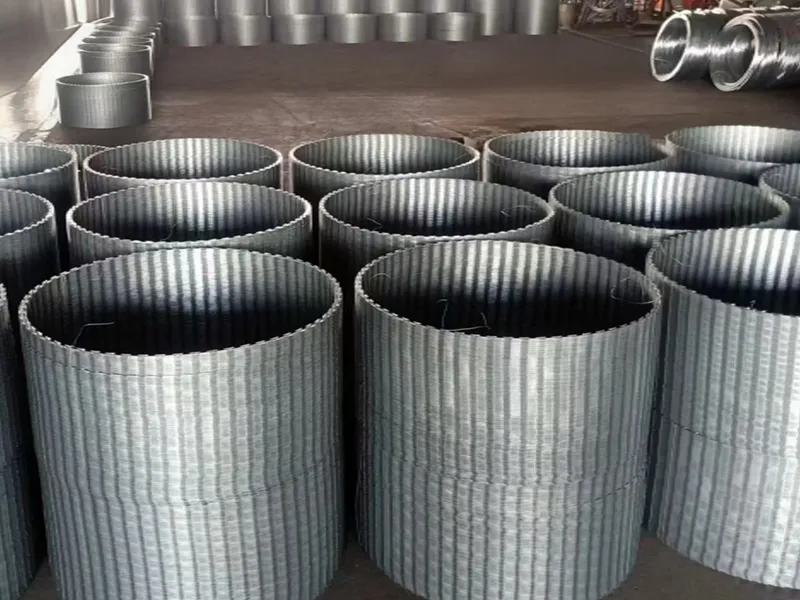

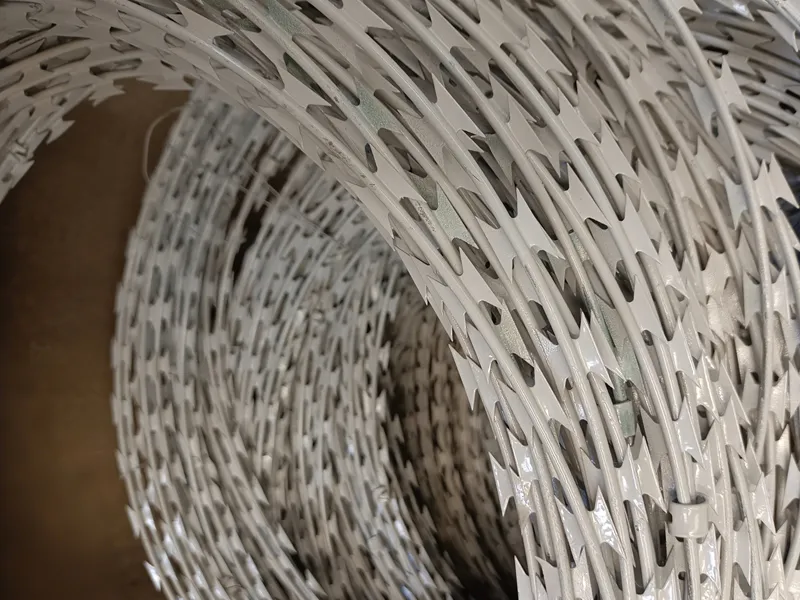

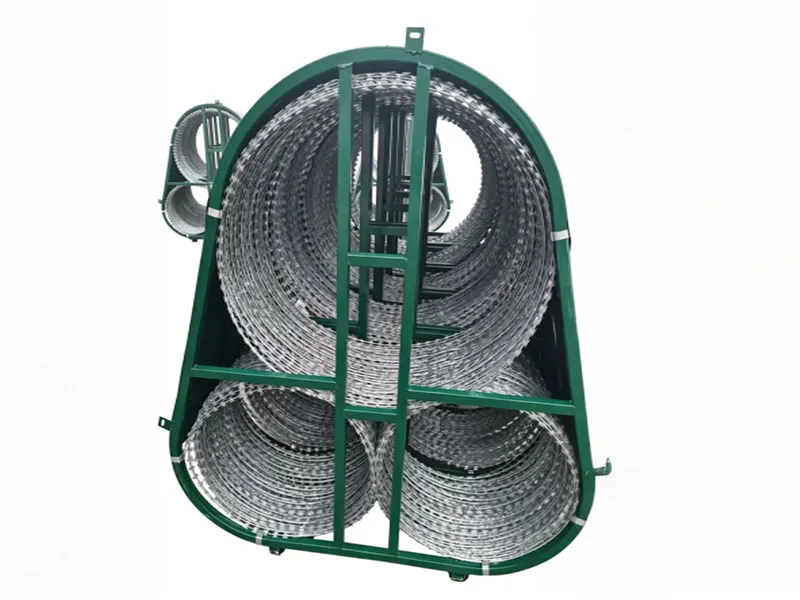

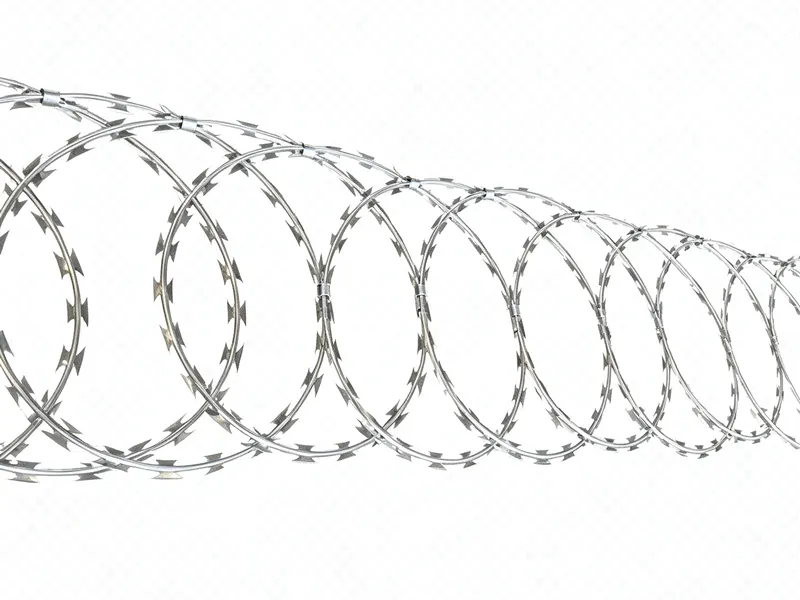

Product Showcase
