Specifications
Product name: Metal Screen
Main types: Perforated screen panel, laser cut screen panel, framed fence screen, partition screen
Material: Q235 carbon steel, galvanized steel, aluminum sheet, stainless steel 304 or 316
Panel thickness: Commonly 1.0 mm to 3.0 mm for perforated panels. Thicker plates can be made for heavy duty guards.
Frame material: Square tube or rectangular tube, commonly 30 x 30 mm, 40 x 40 mm, 50 x 50 mm, or made by drawing
Post type: Square post with base plate, embedded post, or custom fixing bracket
Panel size: Common fence panel sizes include 1000 x 2000 mm, 1200 x 2000 mm, 1500 x 2000 mm, and 1800 x 2000 mm. Custom height and width are available.
Hole pattern: Round hole, square hole, slot hole, diamond hole, geometric cutout, decorative laser cut pattern
Surface finish: Powder coated, galvanized, hot dip galvanized, or stainless steel natural finish
Color options: Yellow, blue, red, green, black, white, silver, and other RAL colors
Installation: Base plate fixing, bolt connection, welded frame, or post mounted system
Application
Fence and boundary panels: Used for factory areas, public facilities, machinery zones, and commercial boundaries.
Indoor and workshop partitions: Suitable for separating work zones while keeping light and airflow.
Equipment and safety guards: Used around machines, production lines, and service areas where visibility is needed.
Decorative screening: Applied to building facades, garden dividers, balcony panels, and architectural partitions.
Products and Specifications

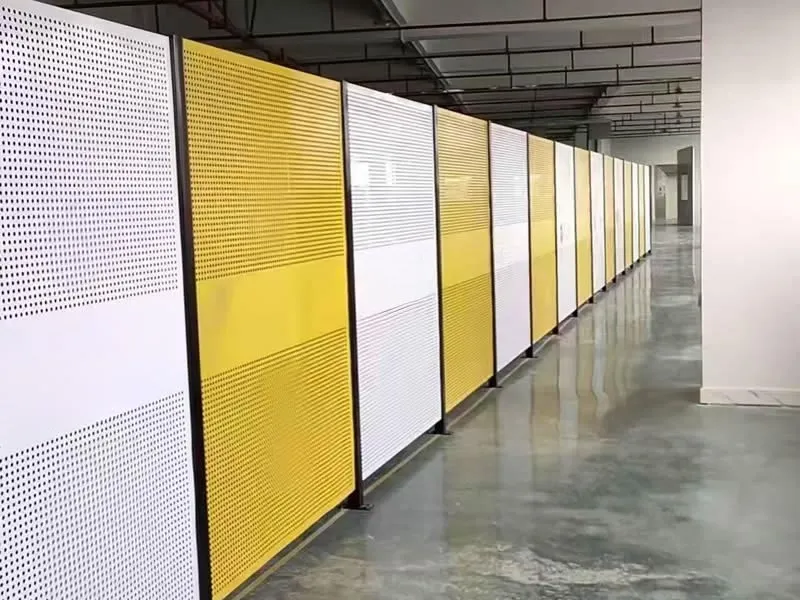

Powder coated perforated panels for indoor partition fencing and workshop separation. The white and yellow panels give clear area division without closing the space fully.
Specifications: Material: Q235 steel sheet. Panel size: 2000 x 1200 mm. Sheet thickness: 1.5 mm to 2.0 mm. Hole type: round or square perforation. Frame: 40 x 40 mm steel tube. Finish: powder coated.
Use: Factory partition, walkway separation, warehouse safety line, indoor fence screen.

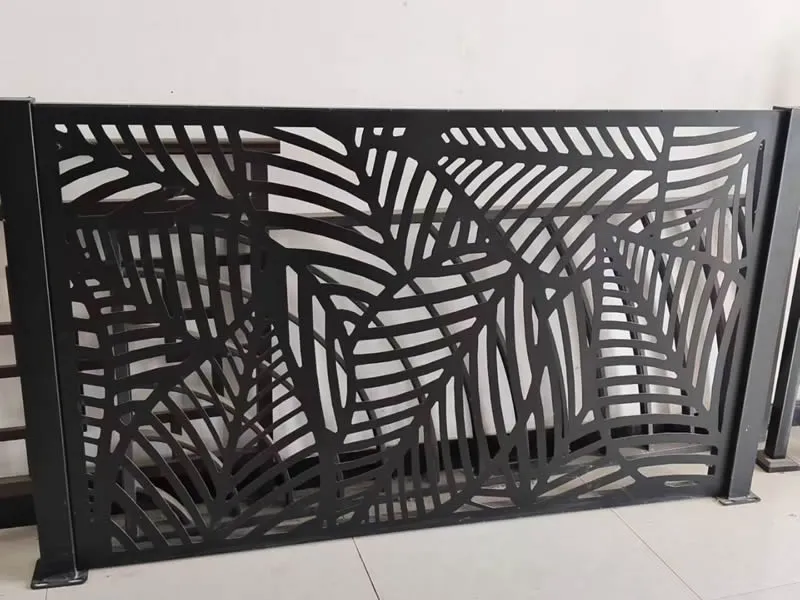

Laser cut screen panel with a leaf style pattern and black coating. This model is more suitable for decorative fencing and privacy screen projects than heavy impact protection.
Specifications: Material: carbon steel or aluminum sheet. Panel size: 1500 x 1000 mm. Plate thickness: 2.0 mm to 3.0 mm. Pattern: laser cut decorative design. Frame: welded side frame. Finish: black powder coating.
Use: Garden screen, balcony privacy panel, commercial partition, architectural metal screen.

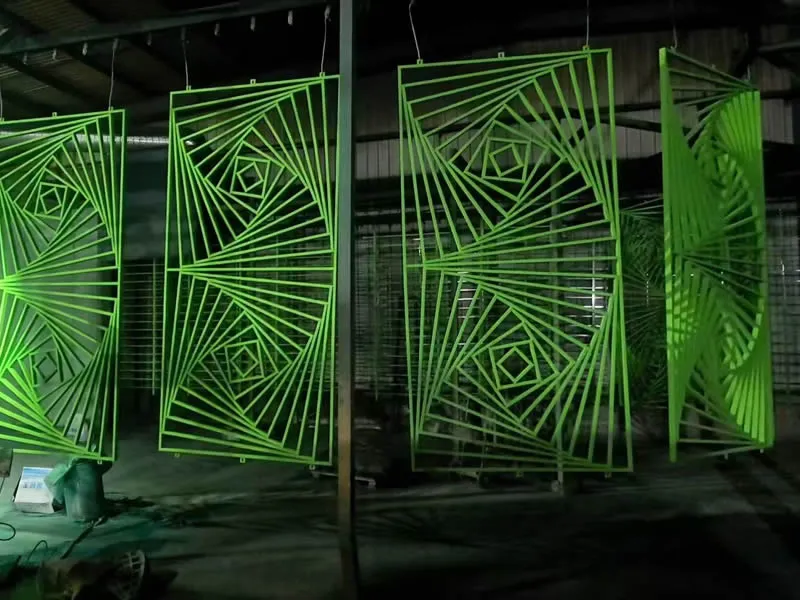

Geometric metal screen panels shown during coating and workshop handling. The open pattern allows air movement and gives a lighter visual effect than solid plate fencing.
Specifications: Material: Q235 steel plate. Panel size: 2000 x 1000 mm. Plate thickness: 2.0 mm to 3.0 mm. Pattern: geometric laser cut. Frame: welded steel frame. Finish: green powder coating.
Use: Fence infill, garden divider, facade screen, outdoor partition.

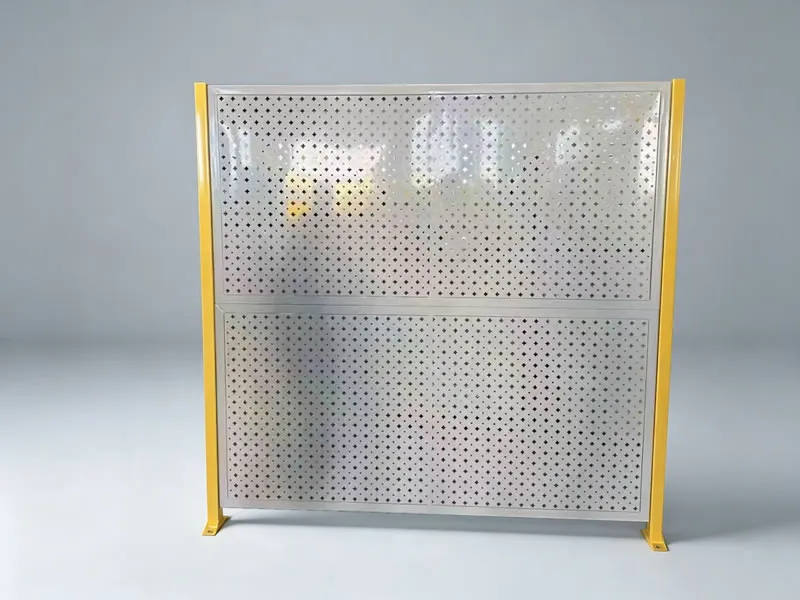

Framed perforated panel with yellow side posts and a silver screen surface. It can be used as a modular barrier where a lighter color panel is needed.
Specifications: Material: galvanized steel or powder coated steel. Panel size: 1600 x 1200 mm. Sheet thickness: 1.2 mm to 1.5 mm. Post: square tube with base plate. Hole type: small square perforation.
Use: Workshop partition, indoor safety screen, equipment area guard, display area barrier.

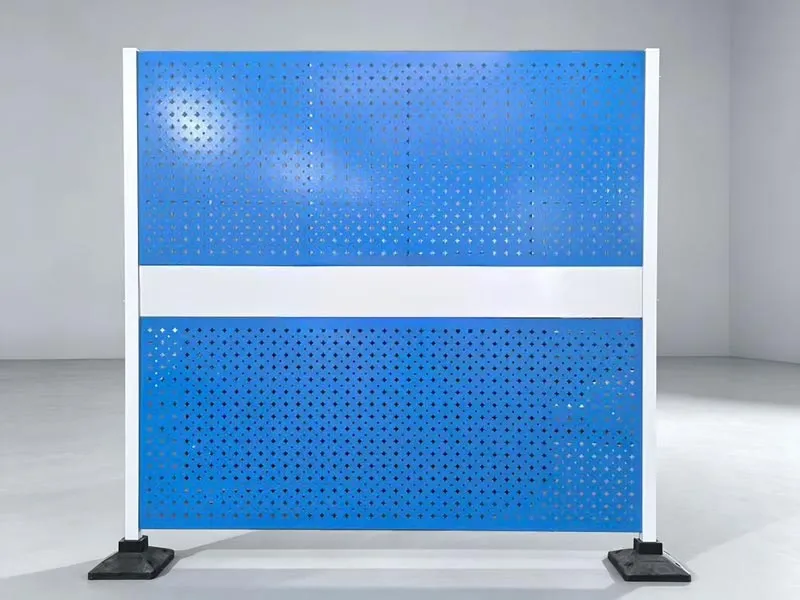

Blue perforated screen panel mounted with white posts and floor bases. The design is suitable for movable or semi fixed separation lines.
Specifications: Material: carbon steel sheet. Panel size: 1800 x 1500 mm. Sheet thickness: 1.5 mm. Frame: welded steel frame with middle rail. Post: white square tube with base. Finish: powder coated blue and white.
Use: Factory barrier, site separation, public area fence, equipment protection screen.

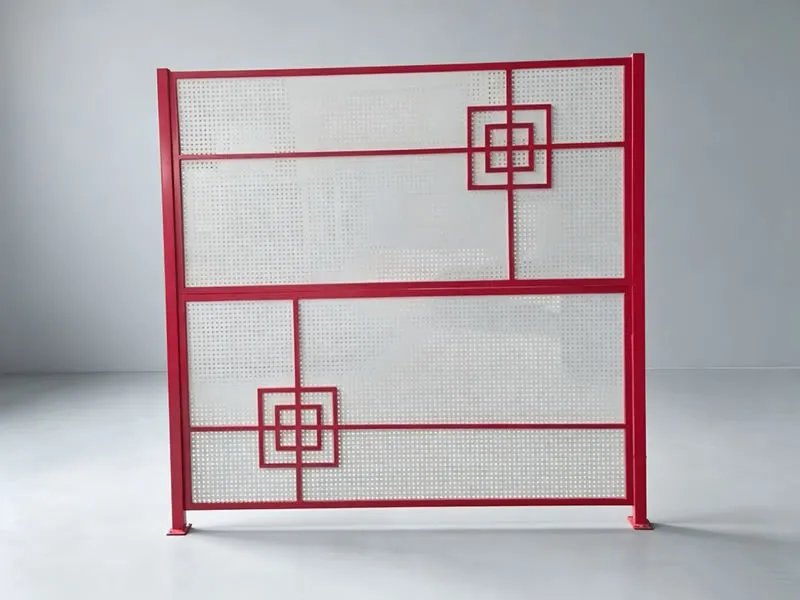

Red framed perforated panel with decorative square details. This type combines a perforated sheet with welded frame decoration.
Specifications: Material: Q235 steel sheet and steel tube frame. Panel size: 1800 x 1600 mm. Sheet thickness: 1.2 mm to 1.5 mm. Hole pattern: fine perforation. Frame color: red powder coating.
Use: Commercial fence panel, indoor divider, courtyard screen, decorative barrier.

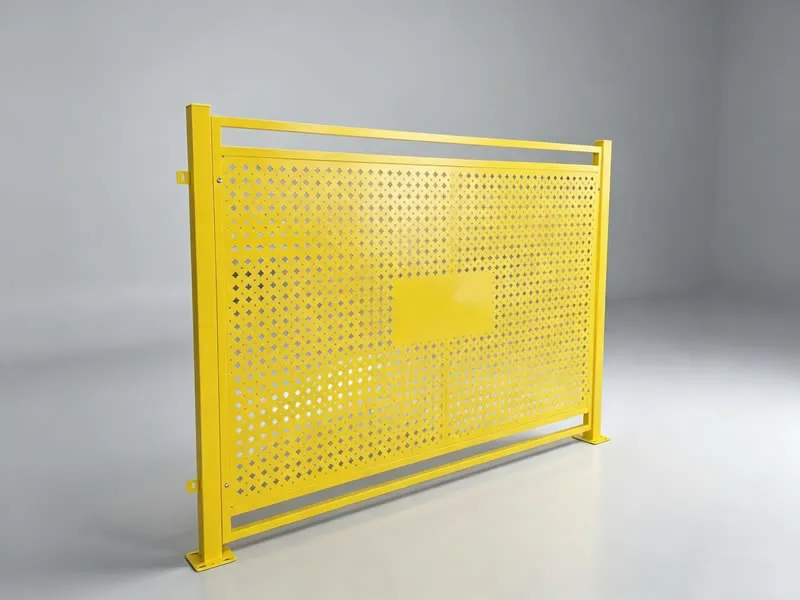

Yellow perforated screen with top rail and base plates. This structure is suitable for fence sections that need a stable frame and simple bolt fixing.
Specifications: Material: carbon steel plate and steel tube. Panel size: 2000 x 1200 mm. Sheet thickness: 1.5 mm to 2.0 mm. Frame: top rail and side posts. Surface: yellow powder coating.
Use: Safety fence, workshop guard, road side screen, equipment boundary.
