Specifications
- Material: High-strength steel sheet for pales, rails, and posts.
- Steel Grade: Mild steel and structural steel options available.

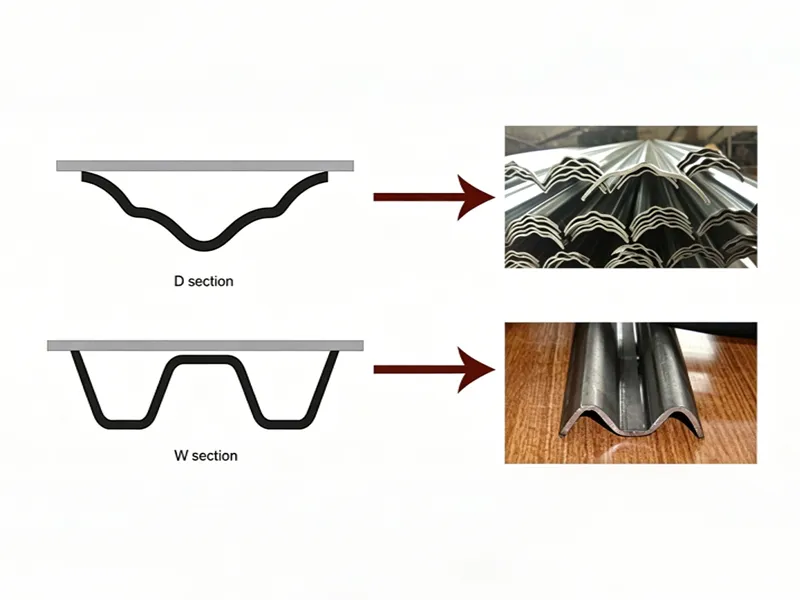

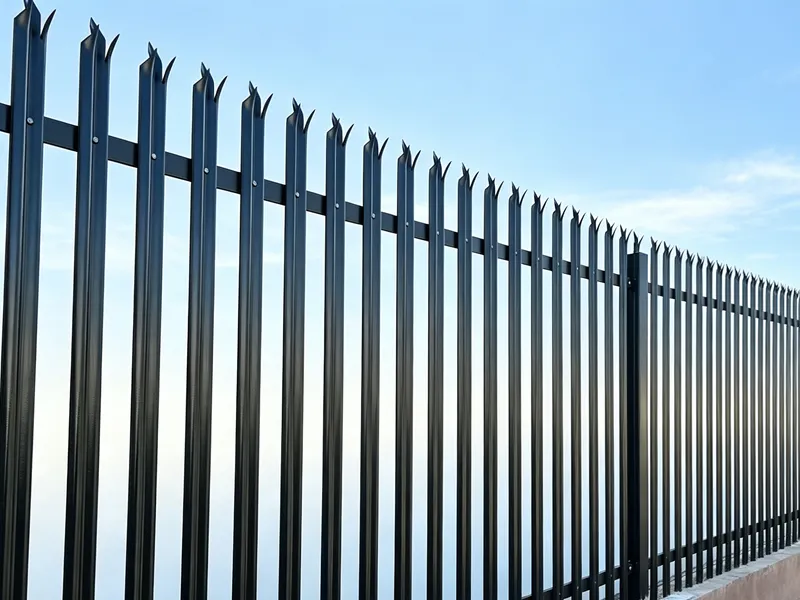

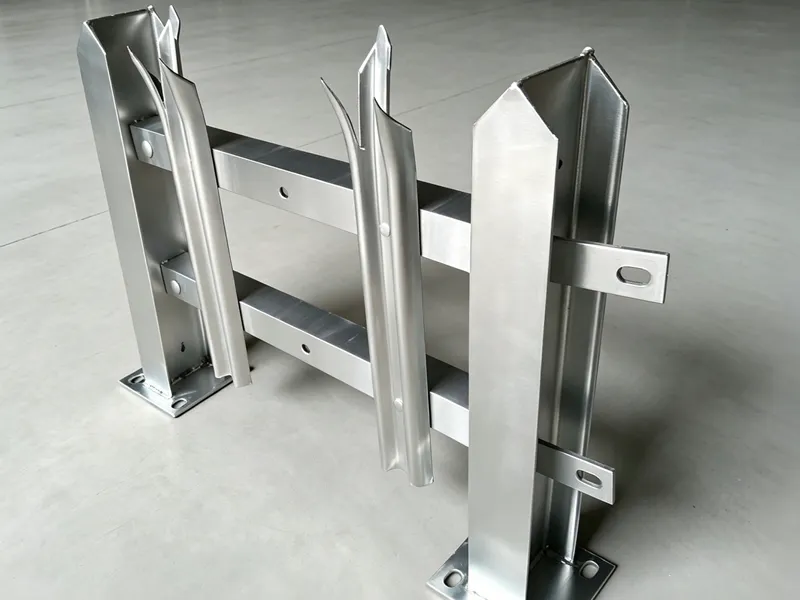

- Pale Profiles: W-profile and D-profile steel pales.
- Pale Thickness: 2.0 mm, 2.5 mm, and 3.0 mm.
- Pale Heights: 1.2 m to 3.6 m available.
- Pale Design: Corrugated profiles improve strength and anti-climbing performance.
- Rail Type: Horizontal steel rails connect and support vertical pales.
- Rail Size: Available in various sizes for different fence heights and loads.
- Fixing Method: Secured with bolts or anti-tamper fasteners.

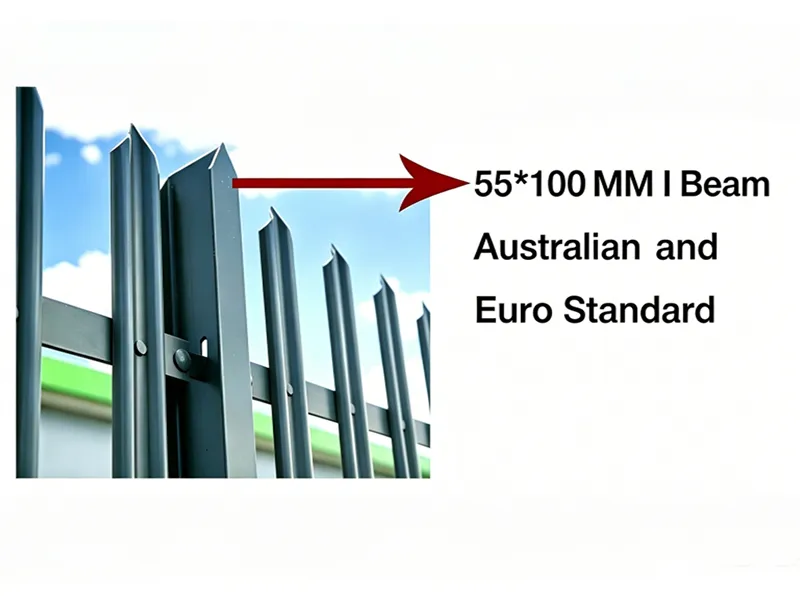

- Post Type: Steel posts provide panel support and stability.
- Post Spacing: Customized based on fence height and site conditions.
- Installation: Posts fixed in concrete foundations for secure installation.
- Surface Treatment: Hot-dip galvanized, powder coated, or galvanized with polyester powder coating.
- Common Colors: RAL 6005 green, RAL 7016 anthracite gray, and RAL 9005 black.
- Fixing Hardware: Bolts, nuts, and brackets for fence assembly.
Steel Palisade Fence Head Styles
- Triple-Pointed Head: Three sharp points for high-security applications.
- Single-Pointed Head: Single spear-point design for anti-climbing protection.
- Pointed Head: Standard pointed top for general security fencing.
- Rounded and Notched Head: Rounded top with notched edges for safe perimeter protection.
| Parameter | W Profile Pales | D Profile Pales |
|---|---|---|
| Thickness | 2.0 mm, 2.5 mm, 3.0 mm | 2.5 mm, 3.0 mm, 3.5 mm |
| Standard Heights | 1.8 m, 2.0 m, 2.4 m, 3.0 m, 3.6 m | 1.2 m, 1.5 m, 1.8 m, 2.1 m, 2.4 m |
| Material | Hot-dip galvanized steel EN ISO 1461 | Hot-dip galvanized steel EN ISO 1461 |
| Coating Options | Polyester powder coating, RAL colors | Polyester powder coating, RAL colors |
| Fixing Hardware | M8 anti-tamper shear nuts | M8 anti-tamper shear nuts |
Applications
- Factories: Perimeter protection for industrial sites.
- Warehouses: Security fencing for storage areas.
- Utilities: Protection for power and water facilities.
- Commercial Properties: Suitable for buildings and business parks.
- Infrastructure: Used for transport and energy projects.
- High-Security Areas: Anti-climbing protection for restricted zones.
- Customization: Adjustable height, profiles, coatings, and accessories.

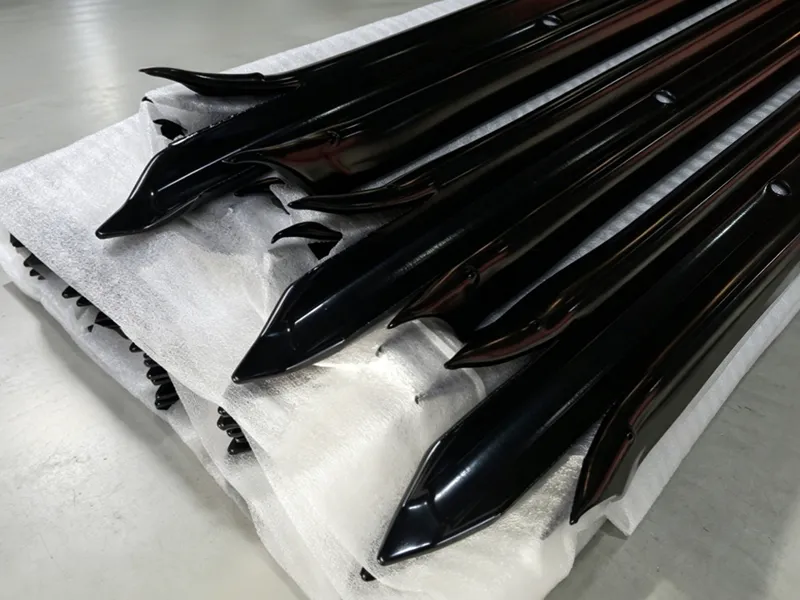

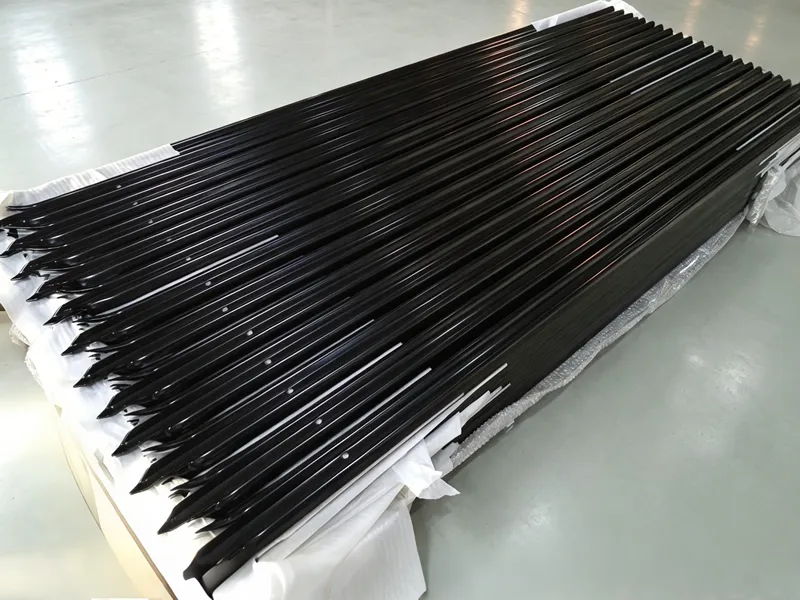

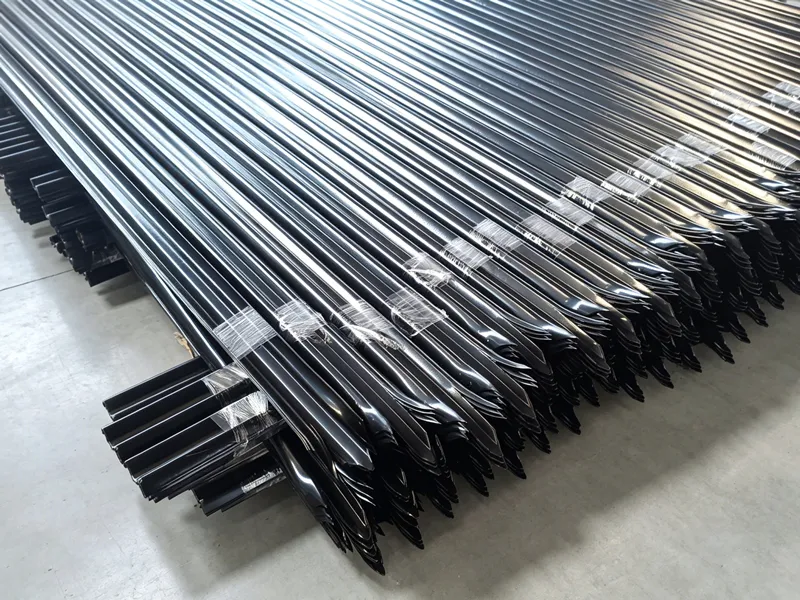

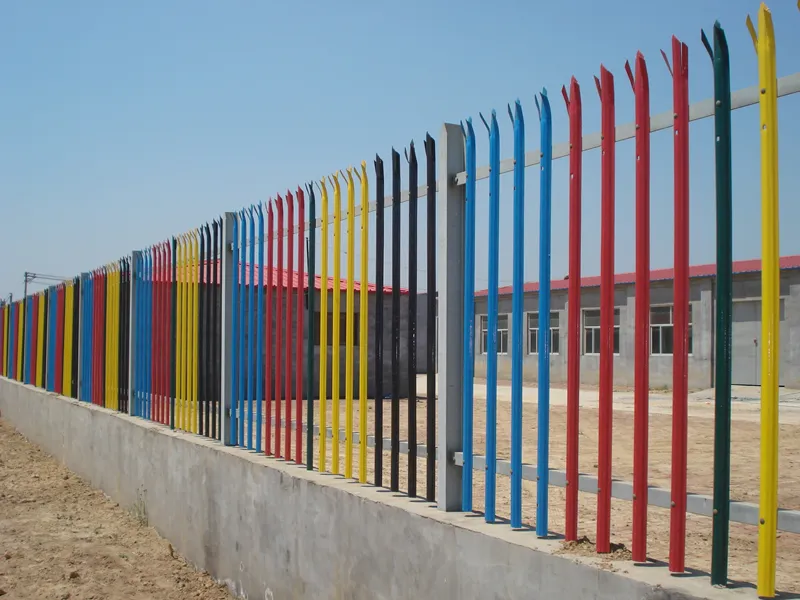

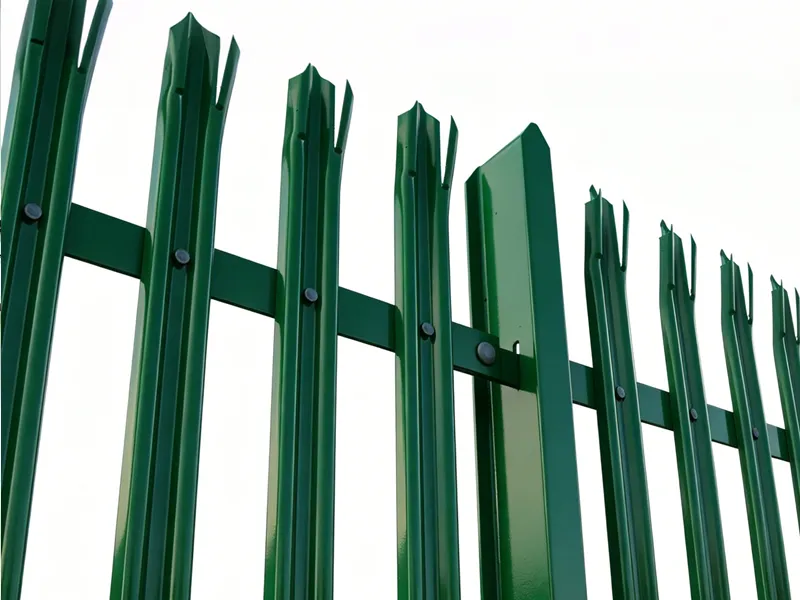

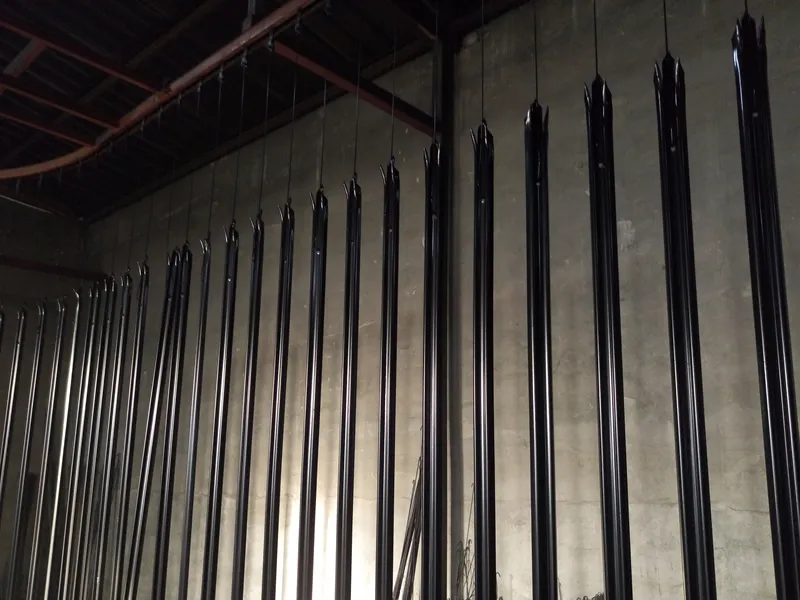

Product Showcase
