Barbed Wire is used for boundary protection, livestock fencing, railway fencing, highway fencing, plantation fencing, and general security use. It is made from galvanized steel wire or PVC coated iron wire, with sharp barbs twisted at regular spacing along the strand. Galvanized barbed fencing wire is commonly selected for farm, grassland, and perimeter projects. PVC coated wire is suitable when color matching or added surface protection is required. Common colors include green, blue, yellow, and other requested colors. Barbs can be spaced at 3″, 4″, 5″, or 6″ according to fencing requirements.
Technical Specifications
Product Name: Barbed Wire
Wire Material: Galvanized steel wire, PVC coated iron wire
Surface Finish: Galvanized or PVC coated
PVC Colors: Green, blue, yellow, and other colors on request
Common Strand and Barb Gauges: 12 x 12 BWG, 12 x 14 BWG, 12-1/2 x 12-1/2 BWG, 12-1/2 x 14 BWG, 13 x 13 BWG, 13 x 14 BWG, 14 x 14 BWG, 15 x 15 BWG, 15-1/2 x 15-1/2 BWG
Barb Spacing: 3″, 4″, 5″, 6″
Approximate Length per Kilo: Depends on wire gauge and barb spacing. For example, 12 x 12 BWG is about 6.0617 m/kg at 3″ spacing and 7.6376 m/kg at 6″ spacing. 14 x 14 BWG is about 10.4569 m/kg at 3″ spacing and 13.1752 m/kg at 6″ spacing.
Structure: Twisted strand with fixed sharp barbs
Packing: Supplied in coils. Coil weight and packing method can be arranged according to order requirements.
Custom Options: Wire gauge, barb spacing, coil packing, PVC color
Application
Grassland and Farm Boundary: Used for cattle areas, pasture lines, and farm perimeter fencing.
Railway and Highway Protection: Installed along railway lines, highways, and road boundaries to limit unauthorized access.
Industrial and Security Fencing: Suitable for factories, storage yards, restricted areas, and perimeter security systems.
Plantation and Residential Boundary: Used for garden land, plantation fencing, and dwelling house boundary protection.
Products and Specifications

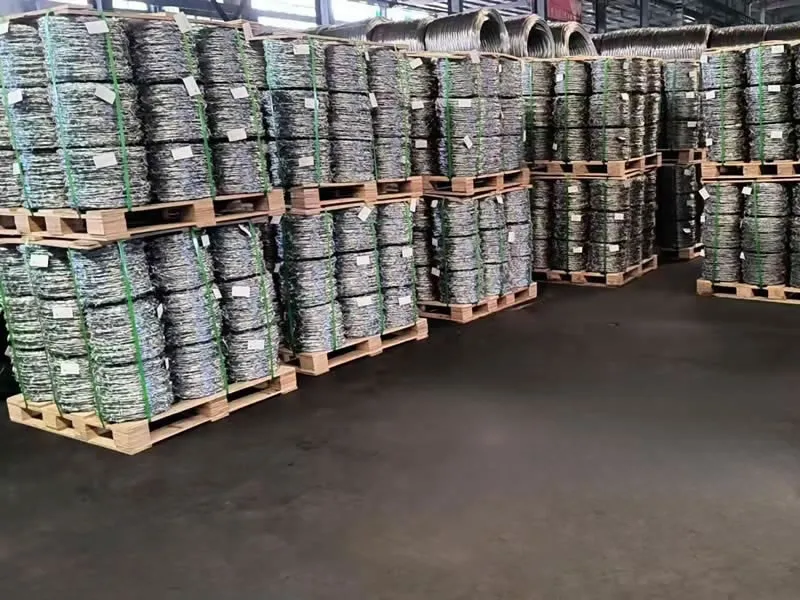

Galvanized barbed wire coils packed on wooden pallets for bulk supply. This 12 x 12 BWG option is used for farm fencing, boundary protection, and general security lines.
Technical Specifications:
Material: Galvanized steel wire
Gauge of strand and barb: 12 x 12 BWG
Barb spacing: 4″
Approximate length per kilo: 6.7590 m/kg
Packing: Coils on pallets
Suitable Use: Grass boundary, farm fencing, railway side protection, storage yard fencing.

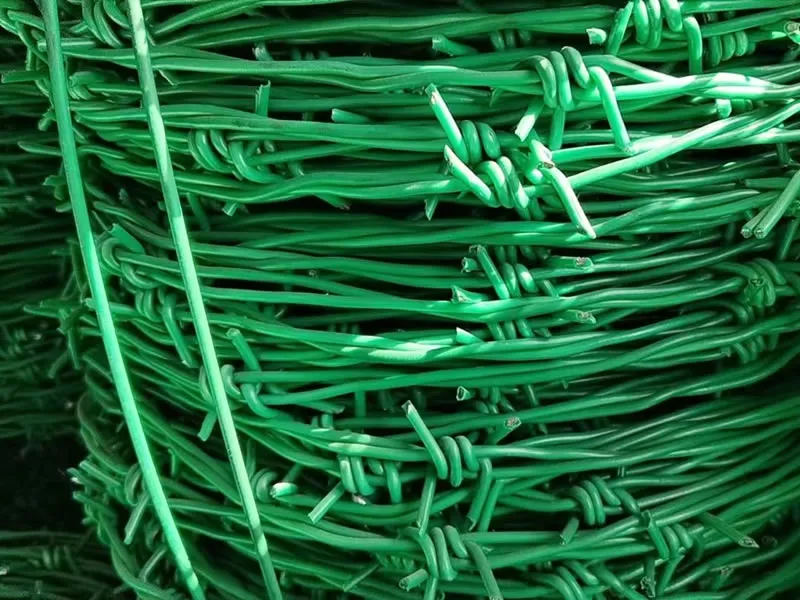

Green PVC coated barbed fencing wire for projects where surface color and outdoor appearance matter. It is often used for plantation fencing, garden boundary, and livestock areas.
Technical Specifications:
Material: PVC coated iron wire
Color: Green
Gauge of strand and barb: 12-1/2 x 14 BWG
Barb spacing: 4″
Approximate length per kilo: 8.814 m/kg before coating
Suitable Use: Plantation fencing, garden boundary, pasture fencing, color matched perimeter fencing.

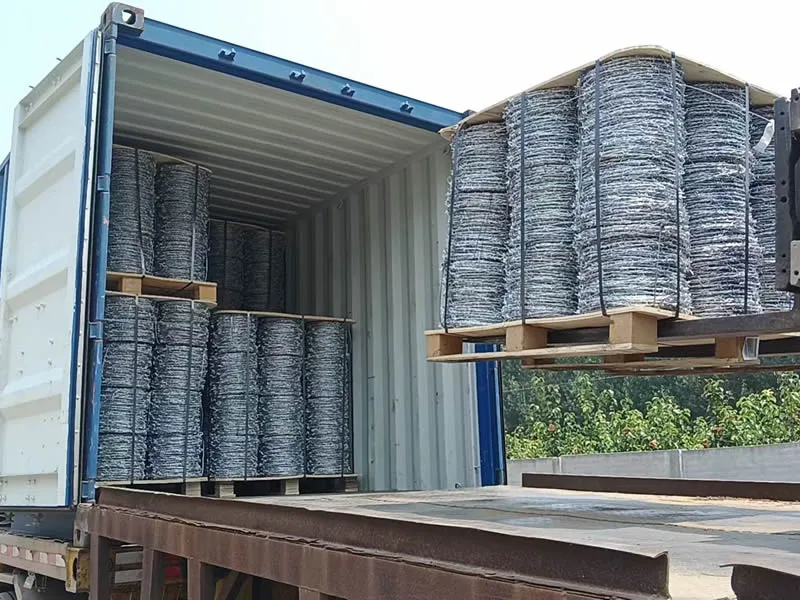

Galvanized barbed wire supplied in coil packing for container shipment. The 12 x 14 BWG specification is a common choice for boundary fencing and rural security projects.
Technical Specifications:
Material: Galvanized steel wire
Gauge of strand and barb: 12 x 14 BWG
Barb spacing: 5″
Approximate length per kilo: 8.3015 m/kg
Packing: Coil packing for container loading
Suitable Use: Highway fencing, railway boundary, farm perimeter, industrial land fencing.

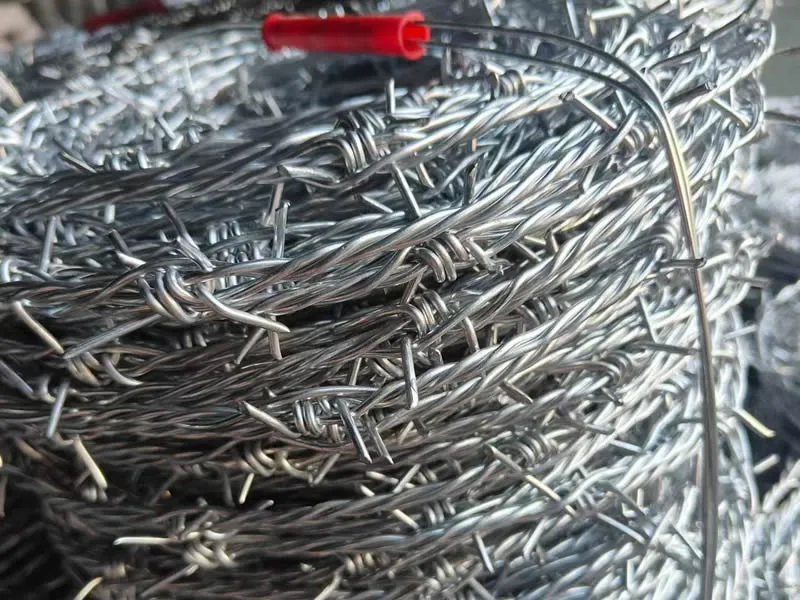

This galvanized barbed wire option shows the twisted strand and fixed barb structure. The 13 x 14 BWG specification is suitable for standard fence lines where moderate wire weight is preferred.
Technical Specifications:
Material: Galvanized steel wire
Gauge of strand and barb: 13 x 14 BWG
Barb spacing: 4″
Approximate length per kilo: 9.6899 m/kg
Structure: Twisted strand with barbs
Suitable Use: Farm fencing, pasture boundary, industrial fencing, temporary perimeter lines.

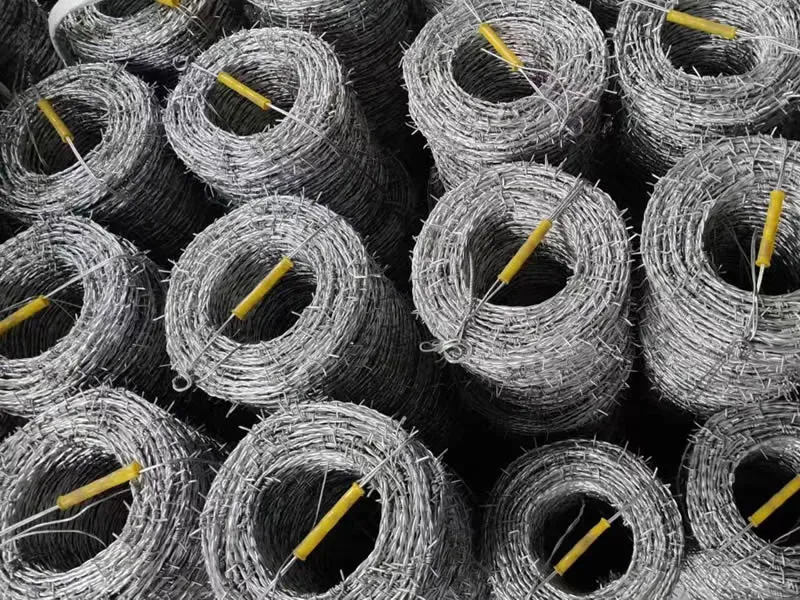

Coil packed galvanized barbed wire with carry handles for easier handling on site. The 14 x 14 BWG wire with 6″ barb spacing is often selected when longer coverage per kilo is needed.
Technical Specifications:
Material: Galvanized steel wire
Gauge of strand and barb: 14 x 14 BWG
Barb spacing: 6″
Approximate length per kilo: 13.1752 m/kg
Packing: Coil packing with handling wire
Suitable Use: Animal fencing, plantation boundary, grassland fencing, rural road protection.

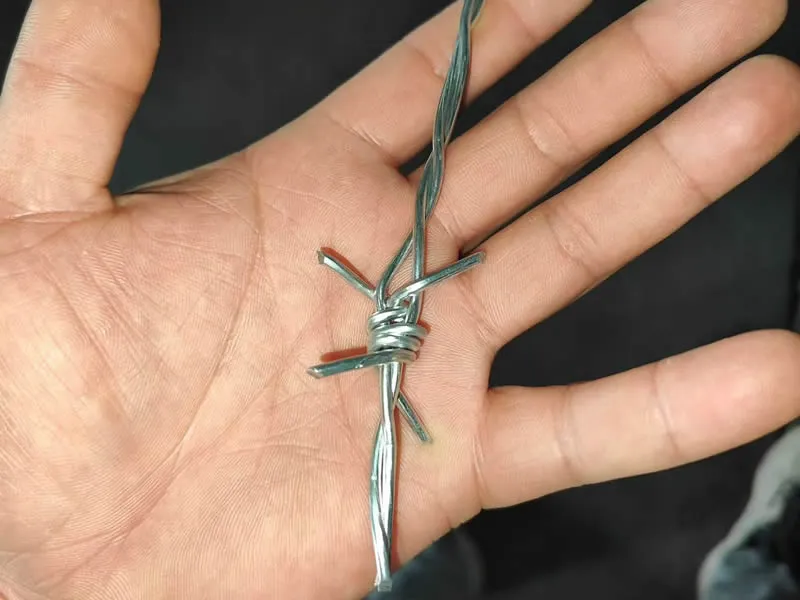

Single strand sample showing the barb and twisted wire form. The 15 x 15 BWG specification is lighter than 12 BWG options and is used where fence tension and post spacing are arranged accordingly.
Technical Specifications:
Material: Galvanized steel wire
Gauge of strand and barb: 15 x 15 BWG
Barb spacing: 5″
Approximate length per kilo: 16.6666 m/kg
Structure: Twisted wire with fixed barbs
Suitable Use: Light farm fencing, plantation boundary, garden land fencing, temporary fencing.

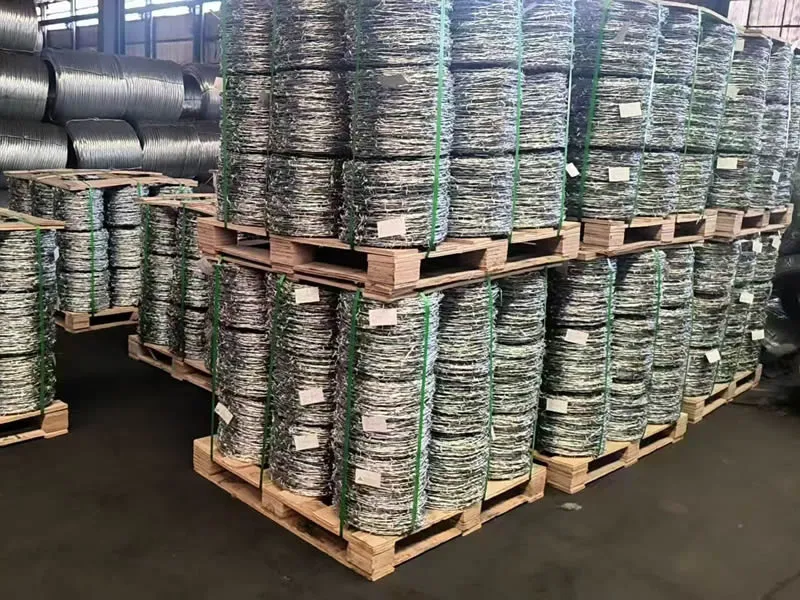

Pallet packed galvanized barbed wire for warehouse storage and bulk delivery. The 13 x 13 BWG specification with 3″ barb spacing is suitable for fence lines requiring closer barb intervals.
Technical Specifications:
Material: Galvanized steel wire
Gauge of strand and barb: 13 x 13 BWG
Barb spacing: 3″
Approximate length per kilo: 7.9808 m/kg
Packing: Coils stacked on wooden pallets
Suitable Use: Security fencing, livestock fencing, railway boundary, industrial perimeter fencing.
