Double Wire Fence is made from welded steel wire with two horizontal wires and one vertical wire at each mesh line. This structure gives the panel better stiffness than common single wire welded mesh fence. It is used for schools, factories, parks, residential areas, public facilities, warehouses, and road side fencing. Regular mesh size is 50 x 200 mm. Common wire combinations include 8 x 2 + 6 mm, 6 x 2 + 5 mm, and 6 x 2 + 4 mm. Panel width is usually 2500 mm. Surface finish can be galvanized, PVC coated, or powder coated according to order requirements.
Specifications
Product Name: Double Wire Fence
Other Names: 868 fence, 656 fence, double horizontal wire fence, twin wire mesh fence
Material: Low carbon steel wire or galvanized steel wire
Processing: Welded wire mesh panel
Panel Width: 2500 mm
Panel Height: 630 mm, 830 mm, 1030 mm, 1230 mm, 1430 mm, 1630 mm, 1830 mm, 2030 mm, 2230 mm, 2430 mm
Mesh Size: 50 x 200 mm
Wire Diameter: 8 x 2 + 6 mm, 6 x 2 + 5 mm, 6 x 2 + 4 mm
Post Height: 1100 mm, 1300 mm, 1500 mm, 1700 mm, 1900 mm, 2100 mm, 2400 mm, 2600 mm, 2800 mm, 3000 mm
Surface Finish: Galvanized, PVC coated, powder coated, or galvanized before coating
Color: Green, black, gray, white, and other colors by order
Post Type: Square post, peach post, round post, or custom post
Fittings: Clips, clamps, bolts, post caps, base plates, and matching gate fittings
Application
School and Park Fencing: Used for open boundary fencing where visibility through the fence is needed.
Factory and Warehouse Fencing: Suitable for workshop perimeters, storage yards, and internal separation areas.
Residential and Garden Fencing: Used for community boundaries, garden fences, and private property lines.
Public Facility Fencing: Applied to road side areas, municipal projects, sports fields, and public buildings.
Products and Specifications

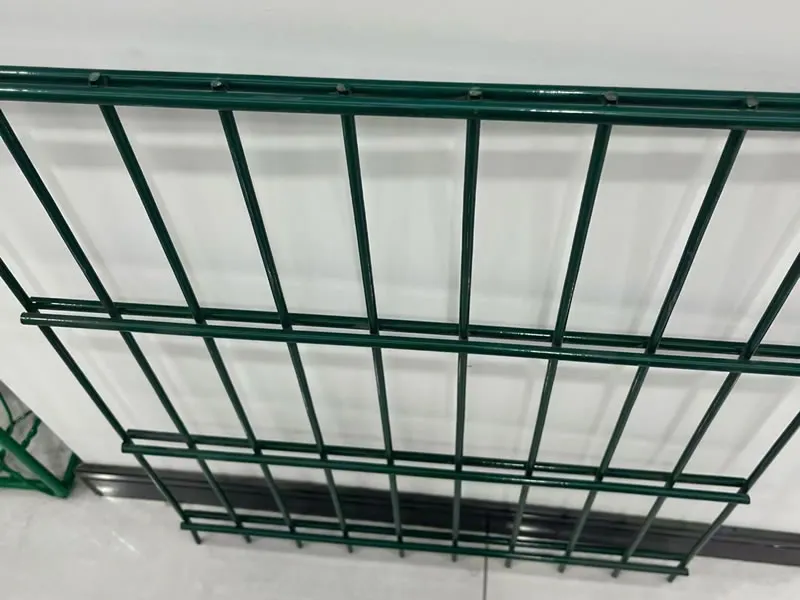

Green coated Double Wire Fence panel with twin horizontal wires and vertical wires. This 868 type is used where the fence line needs a stronger panel face. It is a common choice for factory boundaries, school fencing, and public area fencing.
Specifications:
Material: Low carbon steel wire or galvanized steel wire
Panel Size: 1830 x 2500 mm
Mesh Size: 50 x 200 mm
Wire Diameter: 8 x 2 + 6 mm
Post Height: 2400 mm
Surface Finish: Galvanized and green coated
Application: Factory boundary, school fence, park fence, public facility fencing.

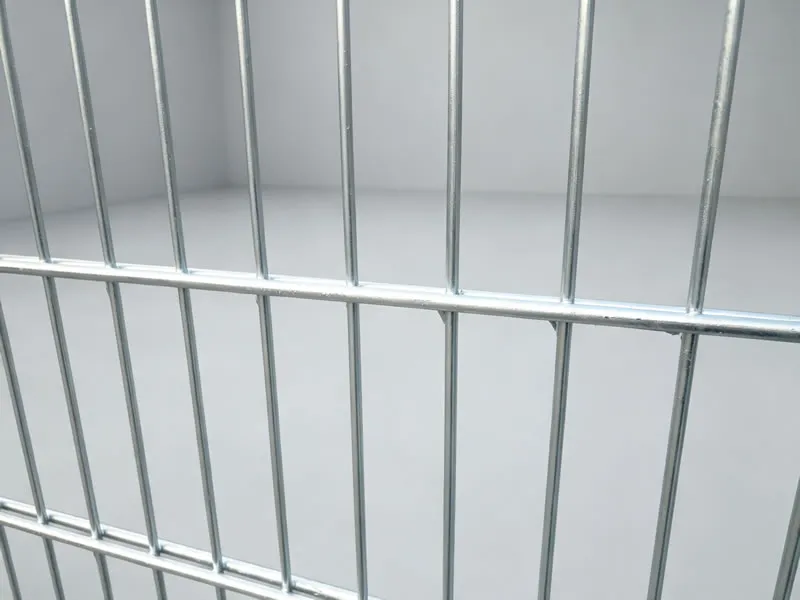

Galvanized double wire mesh panel with clear welded joints. The 656 type uses two 6 mm horizontal wires and one 5 mm vertical wire. It is lighter than 868 type and is suitable for standard perimeter projects.
Specifications:
Material: Galvanized steel wire
Panel Size: 1630 x 2500 mm
Mesh Size: 50 x 200 mm
Wire Diameter: 6 x 2 + 5 mm
Post Height: 2100 mm
Surface Finish: Galvanized
Application: Residential boundary, garden fence, warehouse area, general perimeter fencing.

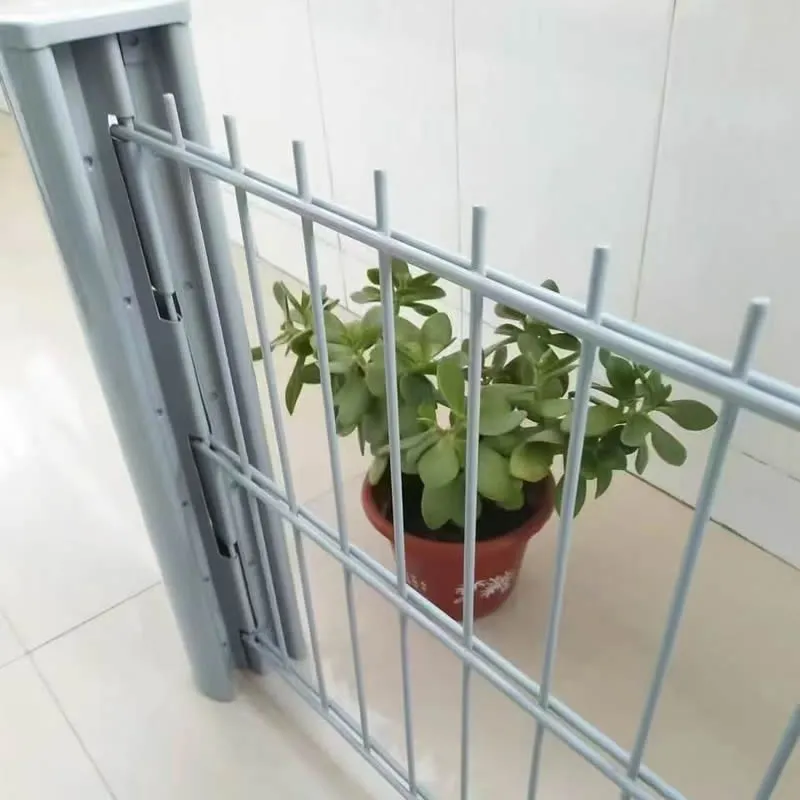

Gray double wire fence panel connected with post fixing slots. The 1230 mm height is used for low boundary lines, garden areas, and internal partitions. The 646 wire combination is suitable where a lighter panel is enough.
Specifications:
Material: Low carbon steel wire
Panel Size: 1230 x 2500 mm
Mesh Size: 50 x 200 mm
Wire Diameter: 6 x 2 + 4 mm
Post Height: 1700 mm
Surface Finish: Powder coated or PVC coated gray
Application: Garden fence, walkway separation, internal partition, residential boundary.

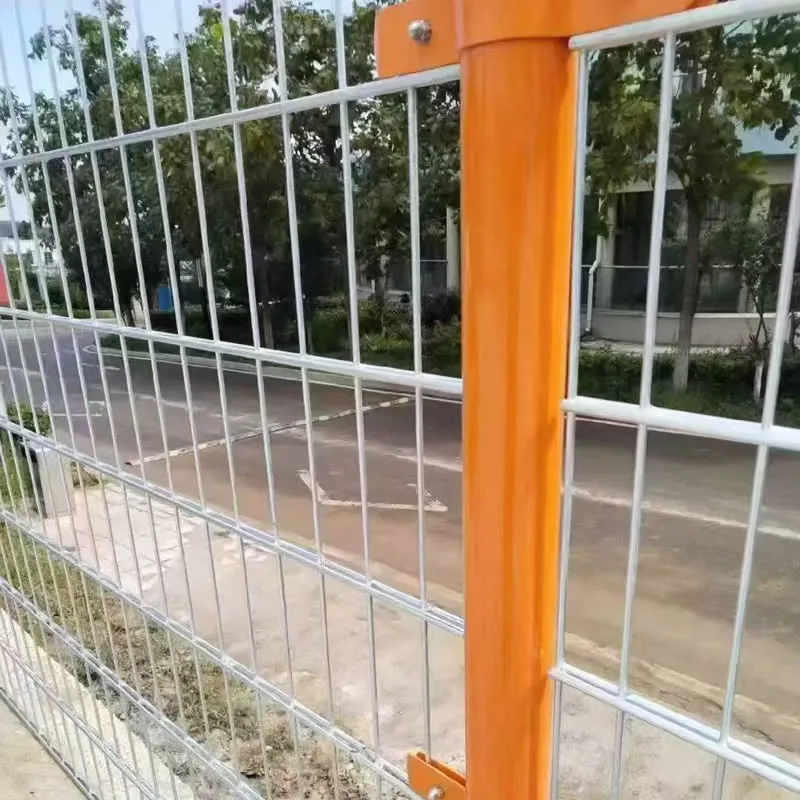

Outdoor installed double wire fence with steel post and bolt fixing. The 2030 mm panel height is used for factory, road side, and public facility fencing. Post type and fixing method can be confirmed according to site drawings.
Specifications:
Material: Galvanized steel wire
Panel Size: 2030 x 2500 mm
Mesh Size: 50 x 200 mm
Wire Diameter: 8 x 2 + 6 mm
Post Height: 2600 mm
Surface Finish: Galvanized and coated
Application: Road side fence, factory perimeter, public facility fence, warehouse yard.

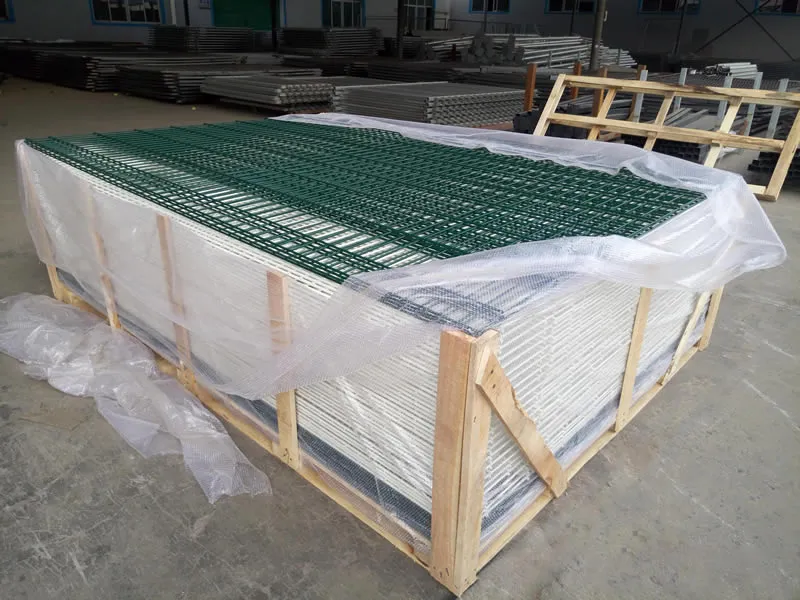

Green coated panels packed in wooden crate for delivery. The 1430 mm height is suitable for garden, park, and community fencing. Panels can be packed with plastic film, pallet, or wooden crate according to shipping needs.
Specifications:
Material: Low carbon steel wire
Panel Size: 1430 x 2500 mm
Mesh Size: 50 x 200 mm
Wire Diameter: 6 x 2 + 5 mm
Post Height: 1900 mm
Surface Finish: Galvanized and green coated
Packing: Wooden crate or pallet packing
Application: Park fence, garden boundary, community fence, public green area.

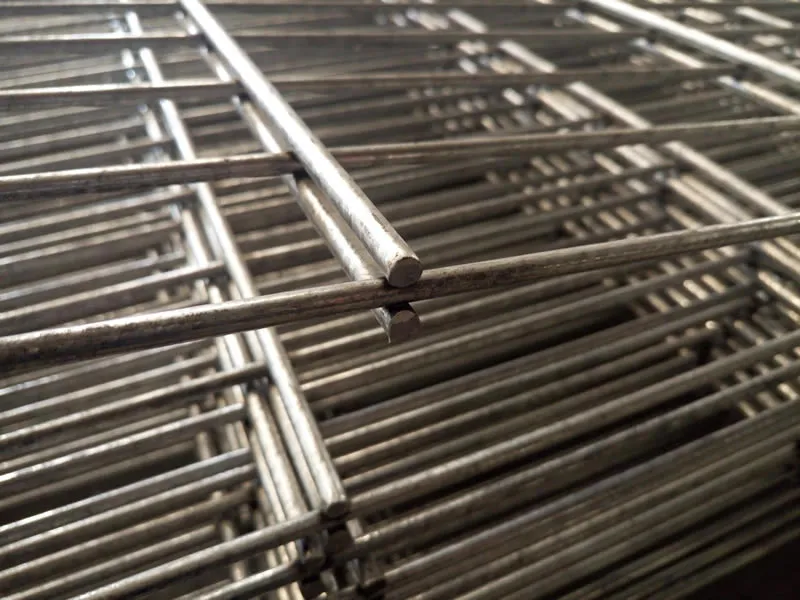

Raw welded double wire panel showing the twin wire structure before final surface treatment. The 2430 mm height is used for taller perimeter fencing. Final coating, post type, and fittings should be confirmed before production.
Specifications:
Material: Low carbon steel wire
Panel Size: 2430 x 2500 mm
Mesh Size: 50 x 200 mm
Wire Diameter: 8 x 2 + 6 mm
Post Height: 3000 mm
Surface Finish: Galvanized, PVC coated, or powder coated by order
Application: Industrial boundary, high perimeter fence, warehouse fence, public facility fencing.

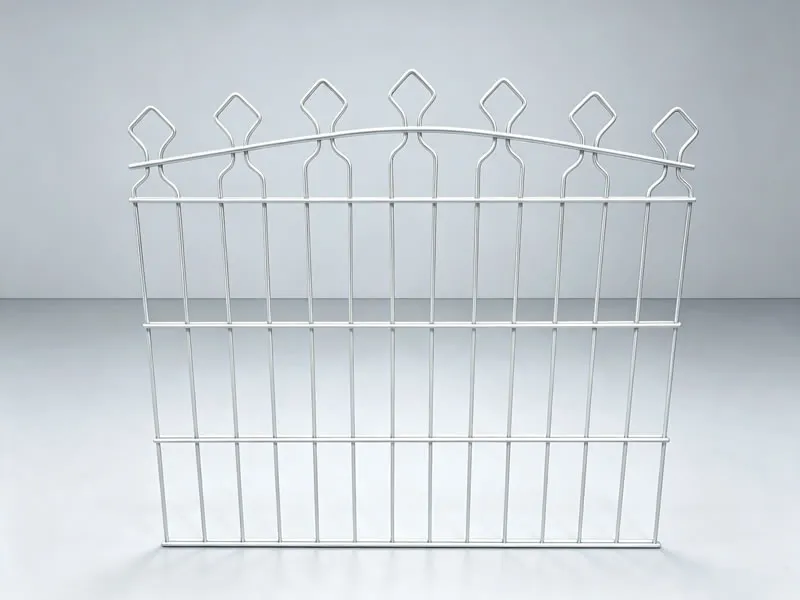

This image shows a decorative welded garden fence panel, not the standard 868 or 656 double wire fence structure. It can be used as a separate garden fence item when the customer needs a curved top or ornamental panel style.
Specifications:
Material: Low carbon steel wire
Panel Type: Decorative welded garden fence
Top Style: Curved top with loop design
Surface Finish: Galvanized or coated by order
Size: Made according to drawing or sample
Application: Garden edge, flower bed fence, small yard fence, landscape fencing.
