3D Panel Fence is made from welded low carbon steel wire with V shaped bends across the panel. The bends help the panel stay firm after installation. It is used for residential boundaries, schools, factories, parks, gardens, warehouses, and public facility fencing. Common materials are Q195 and Q235 steel wire. Surface treatment can be black wire welded mesh with PVC coating, galvanized welded mesh with PVC coating, or hot dipped galvanized welded mesh with PVC coating. Regular colors include dark green, light green, blue, yellow, white, black, orange, and red.
Specifications
Product Name: 3D Panel Fence
Other Names: 3D welded mesh fence, curved welded fence, V bend mesh fence, wire mesh fence panel
Material: Low carbon steel wire, Q195 or Q235
Processing: Welded wire mesh panel with bending
Panel Width: 2500 mm
Fence Height: 630 mm, 830 mm, 1030 mm, 1230 mm, 1530 mm, 1830 mm, 2030 mm, 2430 mm
Post Height: 1100 mm, 1300 mm, 1500 mm, 1800 mm, 2000 mm, 2300 mm, 2500 mm, 3000 mm
Bending: 2 bends, 3 bends, or 4 bends according to panel height
Wire Diameter: 4.5 mm according to the supplied specification
Mesh Opening: 200 x 55 mm or 150 x 50 mm
Panel Type: Black wire welded mesh with PVC coating, galvanized welded mesh with PVC coating, hot dipped galvanized welded mesh with PVC coating
PVC Coated Colors: Dark green, light green, blue, yellow, white, black, orange, red, and custom colors

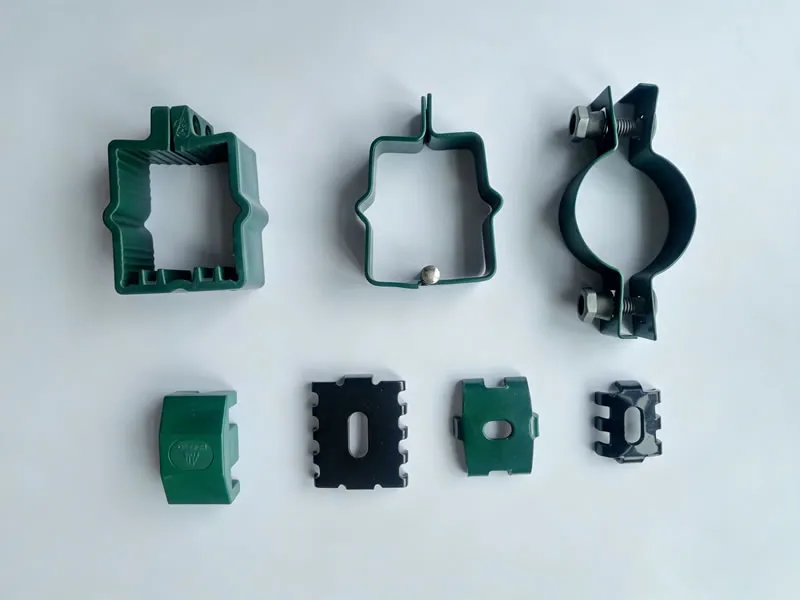

Fittings: Fence posts, clamps, brackets, bolts, post caps, base plates or embedded posts
Application
Residential Boundary Fencing: Used around houses, gardens, villas, and community areas.
School and Park Fencing: Suitable for open boundary lines where visibility through the fence is needed.
Factory and Warehouse Fencing: Used for workshop perimeters, storage yards, and internal separation lines.
Public Facility Fencing: Used for road side areas, green belts, public buildings, and general perimeter projects.
Products and Specifications

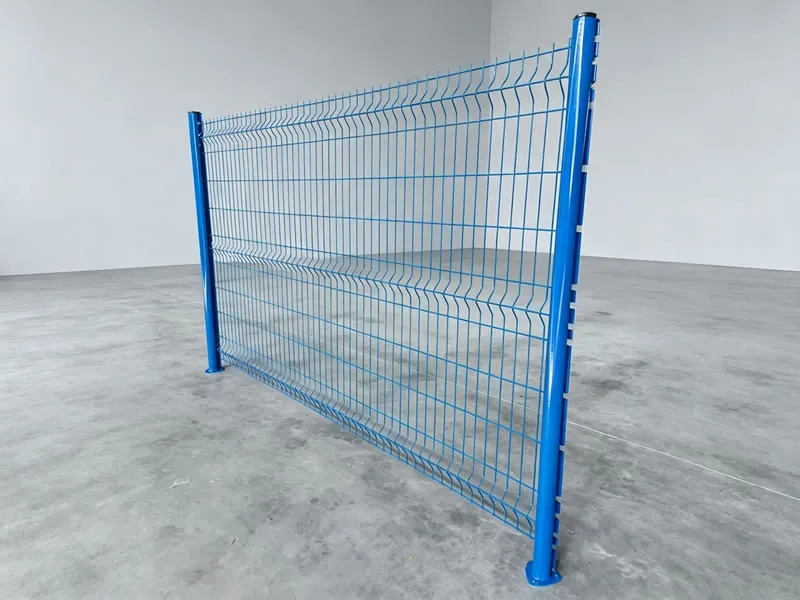

Blue coated 3D welded mesh fence with round posts and panel clips. This model is suitable for school boundaries, factory fence lines, and public areas. The 1830 mm height gives a clear boundary while keeping visibility through the mesh.
Specifications:
Material: Q195 or Q235 low carbon steel wire
Panel Size: 1830 x 2500 mm
Post Height: 2300 mm
Bending: 4 bends
Wire Diameter: 4.5 mm
Mesh Opening: 200 x 55 mm or 150 x 50 mm
Finish: PVC coated
Application: School fence, factory boundary, park fence, public facility fencing.

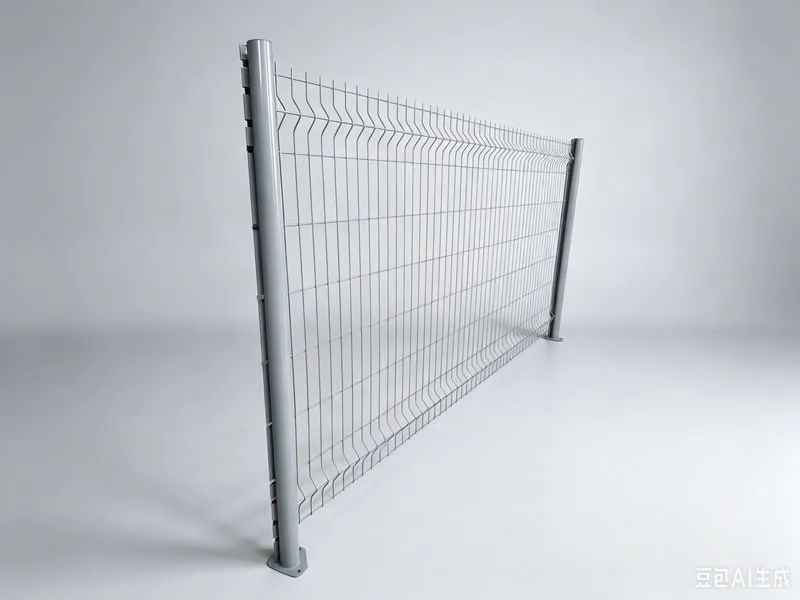

Gray 3D welded mesh fence with a clean panel face and round posts. This size is often used for gardens, residential boundaries, and light commercial areas. It is easier to handle on site than taller panels.
Specifications:
Material: Q195 or Q235 low carbon steel wire
Panel Size: 1530 x 2500 mm
Post Height: 2000 mm
Bending: 3 bends
Wire Diameter: 4.5 mm
Mesh Opening: 200 x 55 mm
Finish: Galvanized welded mesh with PVC coating
Application: Garden fence, residential boundary, park area, internal partition fence.

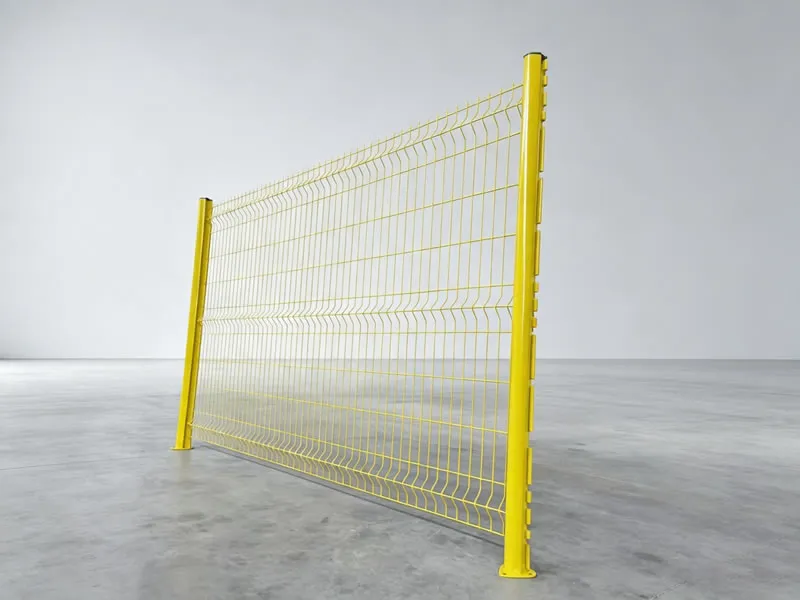

Yellow coated 3D fence panel for visible boundary marking. This height is suitable for workshop separation, garden fencing, and public area barriers. The color can be matched to site requirements.
Specifications:
Material: Q195 or Q235 low carbon steel wire
Panel Size: 1230 x 2500 mm
Post Height: 1800 mm
Bending: 2 bends
Wire Diameter: 4.5 mm
Mesh Opening: 200 x 55 mm or 150 x 50 mm
Finish: PVC coated yellow
Application: Workshop separation, garden fence, road side boundary, public area barrier.

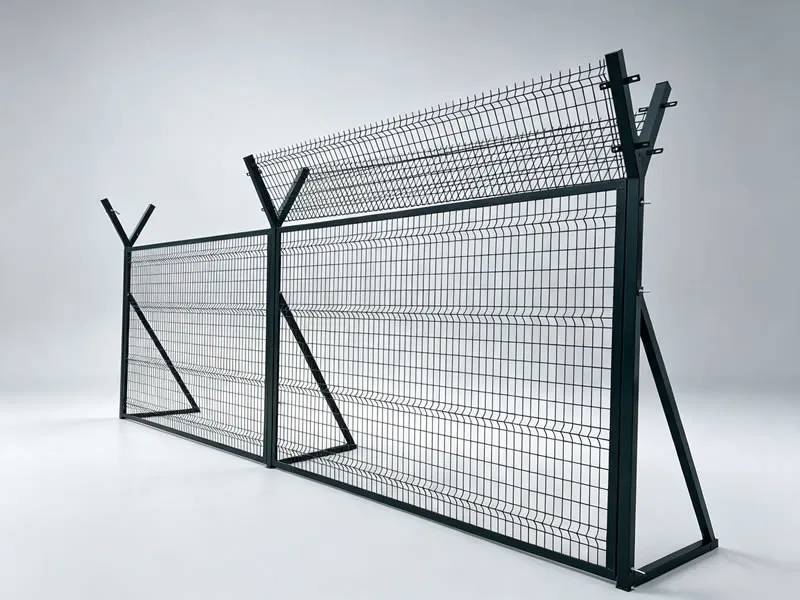

Green 3D welded mesh fence system with upper mesh extension and support frame. This type is used where a higher perimeter line is needed. The top section should be confirmed by drawing before production.
Specifications:
Material: Q195 or Q235 low carbon steel wire
Main Panel Size: 2030 x 2500 mm
Post Height: 2500 mm or made by project drawing
Bending: 4 bends
Wire Diameter: 4.5 mm
Mesh Opening: 200 x 55 mm
Finish: Galvanized and PVC coated green
Application: Factory perimeter, warehouse yard, restricted area boundary, project fencing.

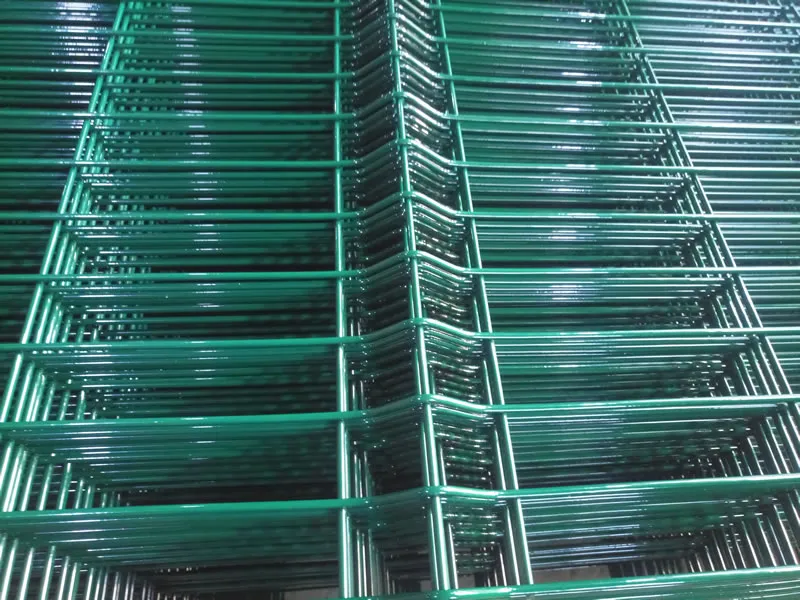

Green coated welded mesh panel showing the V bend structure. This lower height option is suitable for garden fencing, flower bed separation, and small public areas. Matching posts, clamps, bolts, and post caps can be supplied.
Specifications:
Material: Q195 or Q235 low carbon steel wire
Panel Size: 1030 x 2500 mm
Post Height: 1500 mm
Bending: 2 bends
Wire Diameter: 4.5 mm
Mesh Opening: 200 x 55 mm or 150 x 50 mm
Finish: PVC coated green
Application: Garden fence, park separation, residential boundary, walkway fencing.

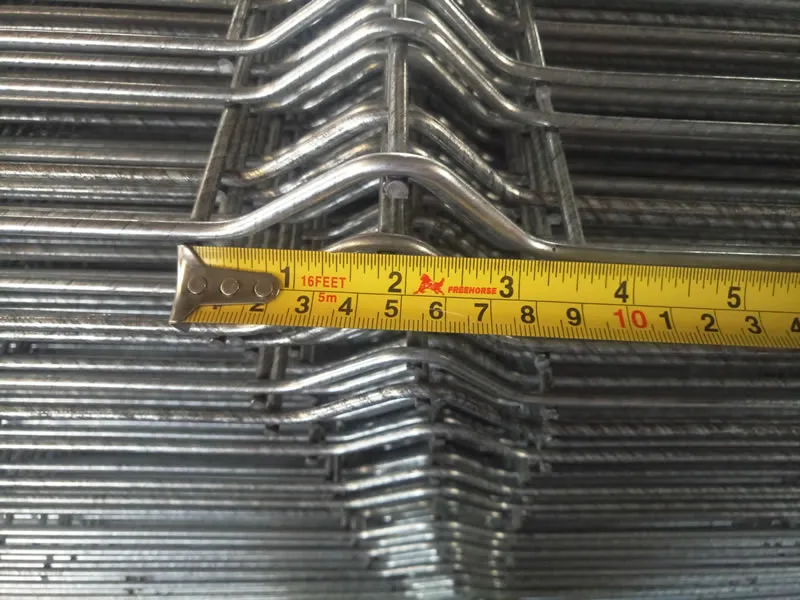

Galvanized 3D welded mesh panel with visible bending detail. The 2430 mm panel is used for taller perimeter fencing. It should be ordered with matching 3000 mm posts and suitable clamps according to installation method.
Specifications:
Material: Q195 or Q235 low carbon steel wire
Panel Size: 2430 x 2500 mm
Post Height: 3000 mm
Bending: 4 bends
Wire Diameter: 4.5 mm
Mesh Opening: 200 x 55 mm
Finish: Hot dipped galvanized welded mesh with PVC coating available
Application: Industrial boundary, warehouse perimeter, public facility fence, high boundary fence project.
