Gabion Mesh is made from double twisted hexagonal steel wire mesh for stone filled baskets, slope protection, riverbank work and retaining structures. It can be supplied in galvanized wire or PVC coated galvanized wire. The mesh is folded for transport and opened on site before stone filling. Common openings include 60 × 80 mm, 80 × 100 mm, 80 × 120 mm, 100 × 120 mm, 100 × 150 mm and 120 × 150 mm. Wire diameter depends on mesh opening and coating type.

Technical specifications

Material: Galvanized steel wire, PVC coated galvanized steel wire

Mesh Type: Double twisted hexagonal wire mesh

Opening Size: 60 × 80 mm, 80 × 100 mm, 80 × 120 mm, 100 × 120 mm, 100 × 150 mm, 120 × 150 mm

Galvanized Wire Diameter: 2.0 mm to 4.0 mm

PVC Coated Wire Diameter: Inner wire 2.0 mm to 3.0 mm, outside diameter 3.0 mm to 4.0 mm

Selvedge Wire: Usually one gauge thicker than mesh wire

Strands: 3

Surface Treatment: Galvanized, PVC coated galvanized

Supply Form: Mesh rolls, folded gabion baskets, cut panels, gabion mattress panels

Packing: Folded bundles, rolls, pallet packing, or packing by order

Custom Options: Mesh opening, wire diameter, basket size, edge wire and coating type

Applications

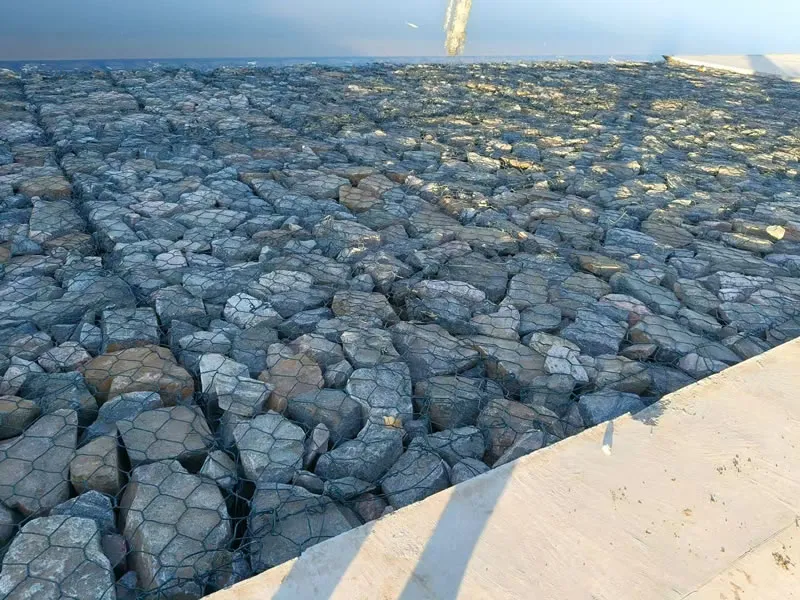

• Riverbank protection, waterway guide work and flood control.
• Slope protection, rockfall prevention and soil stabilization.
• Retaining walls, bridge protection and drainage channel lining.
• Coastal protection, landscape stone cages and erosion control projects.

Products and Specifications

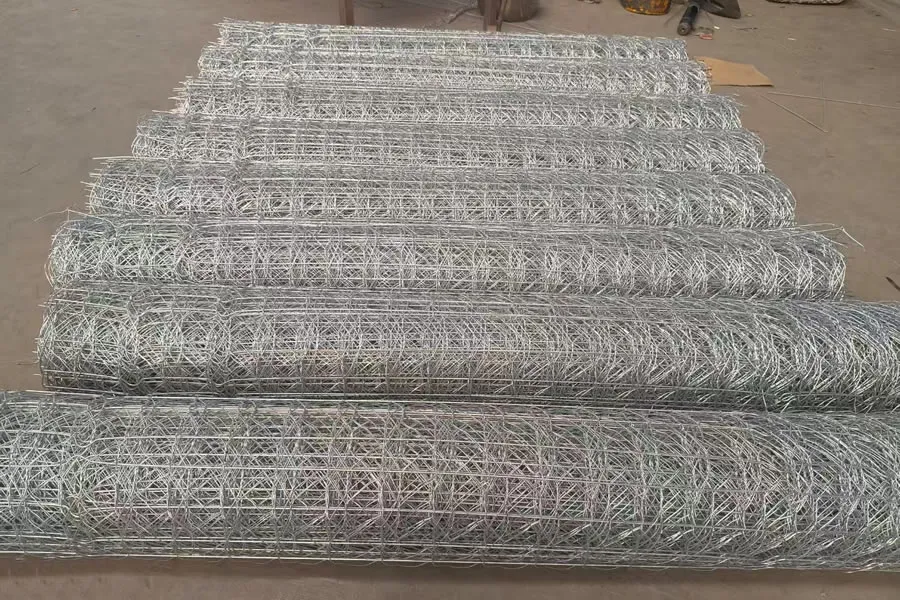

Galvanized Gabion Mesh supplied in rolls for basket making and site preparation. The 80 × 100 mm opening is widely used for stone cage panels, retaining wall baskets and riverbank work.

Technical specifications:
Opening: 80 × 100 mm
Wire Diameter: 2.7 mm galvanized wire
PVC Coated Option: 2.7/3.7 mm by order
Strands: 3
Supply Form: Mesh rolls
Application: Gabion basket production, retaining wall panels, riverbank protection

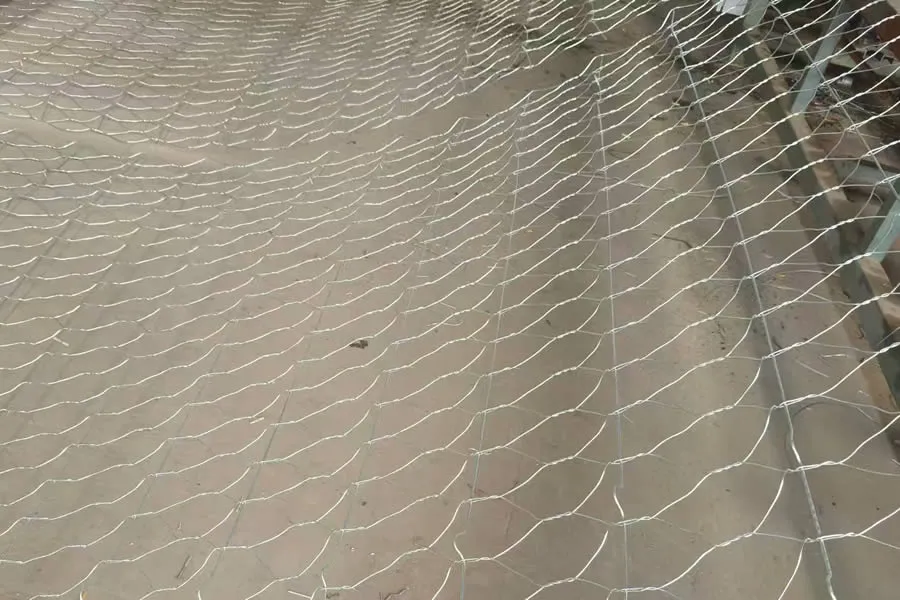

Small opening hexagonal mesh for gabion mattress and slope surface work. The 60 × 80 mm opening helps hold smaller stone more securely than larger mesh.

Technical specifications:
Opening: 60 × 80 mm
Wire Diameter: 2.2 mm galvanized wire
PVC Coated Option: 2.2/3.2 mm by order
Strands: 3
Supply Form: Open mesh sheet or cut panel
Application: Gabion mattress, slope covering, drainage channel protection

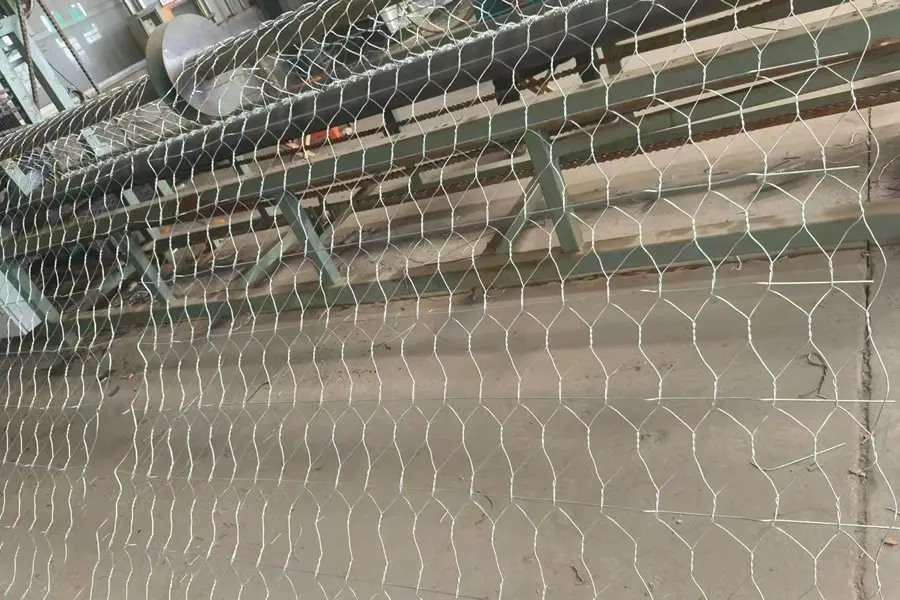

This product is matched with the production line image. The 80 × 120 mm opening is used for gabion baskets and larger stone filling work. The 3.0 mm galvanized wire gives a stronger mesh body than light mattress mesh. Basket size and edge wire can be made by drawing.

Technical specifications:
Opening: 80 × 120 mm
Wire Diameter: 3.0 mm galvanized wire
PVC Coated Option: 3.0/4.0 mm by order
Strands: 3
Supply Form: Machine made panel or folded basket mesh
Application: Gabion baskets, riverbank work, stone cage assembly

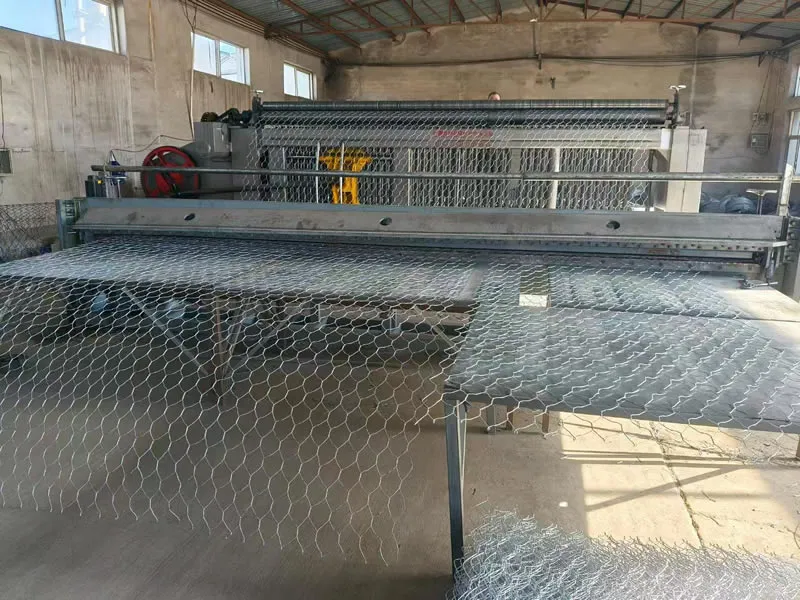

Large opening Gabion Mesh for heavier stone filling and general protection work. The 100 × 150 mm opening should be matched with larger stone size. It is suitable for embankment work, rock filled baskets and projects where fast filling is needed.

Technical specifications:
Opening: 100 × 150 mm
Wire Diameter: 3.4 mm galvanized wire
PVC Coated Option: 2.8/3.8 mm by order
Strands: 3
Supply Form: Machine made mesh, panel or folded basket
Application: Embankment protection, rock filled gabion baskets, soil protection
